Parallel Twin Screw Extruder , PVC Pipe Extruder Machine HYPS75 / 28

Parallel Twin Screw Extruder / HYPS75/28 For Pipe Or Profile Making
Parallel Twin Screw Extruder Condition of use
1. Parallel Twin Screw Extruder Technical features of whole line


2. Parallel Twin Screw Extruder Circumstances condition


Parallel Twin Screw Extruder Feature

1. Screw has internal closed loop heat balancing system by means of distilled water
2. The harden and ground gear box is made with German technology.
3. Twin output shaft Helical Gear Box. Gears are hardened and ground. Both output shafts are integral with high capacity thrust bearings to absorb axial thrust generated during the extrusion process
4. Gear box housing is made of high quality Ductile iron QT-500.
5. Lubricating pump with Heat Exchanger, oil filter and oil flow indicator are provided for force lubrication of Thrust Gear box. The gears and bearings are forced lubricated. Gear box lube oil is circulated in a closed loop through heat exchanger to maintain optimum oil temperature in gearbox.
6. Vacuum degassing system along with dust collector having bypass system & Vacuum pump.
7. Quantitative feeding system with twin screw structure to avoid stagnant material.
8. Plug & Socket for Die head heating zones, Connecting head & Melt temperature indicator.
9. Display Of Heating current for each temperature zone, manual override on all zones in case of sensor failure.
10. Other eclectic and pneumatic components are made in world famous brand such as from Japan, Siemens from Germany etc.


Parallel Twin Screw Extruder Following as parameters

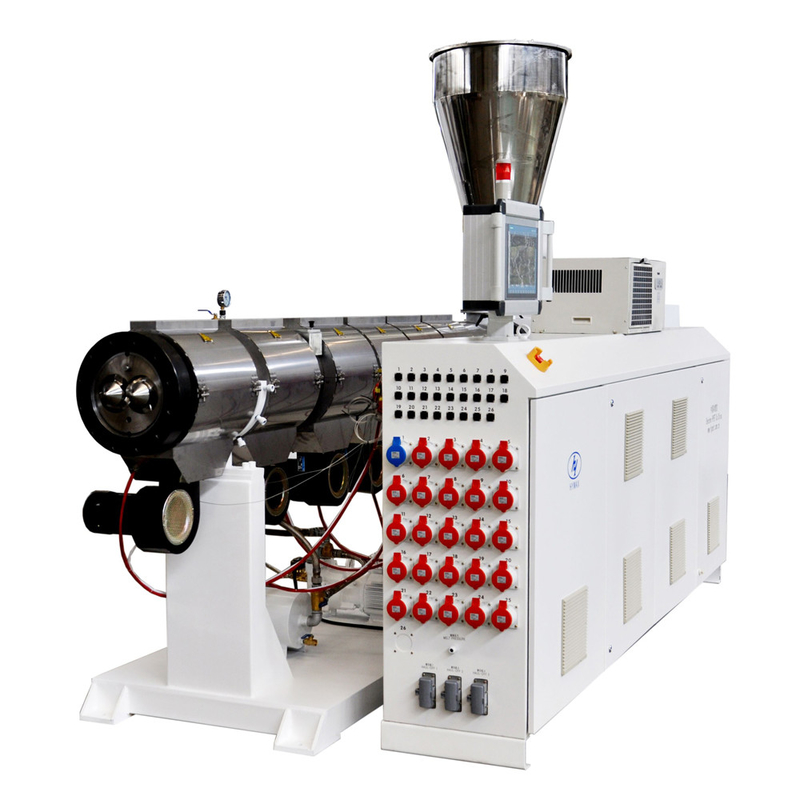

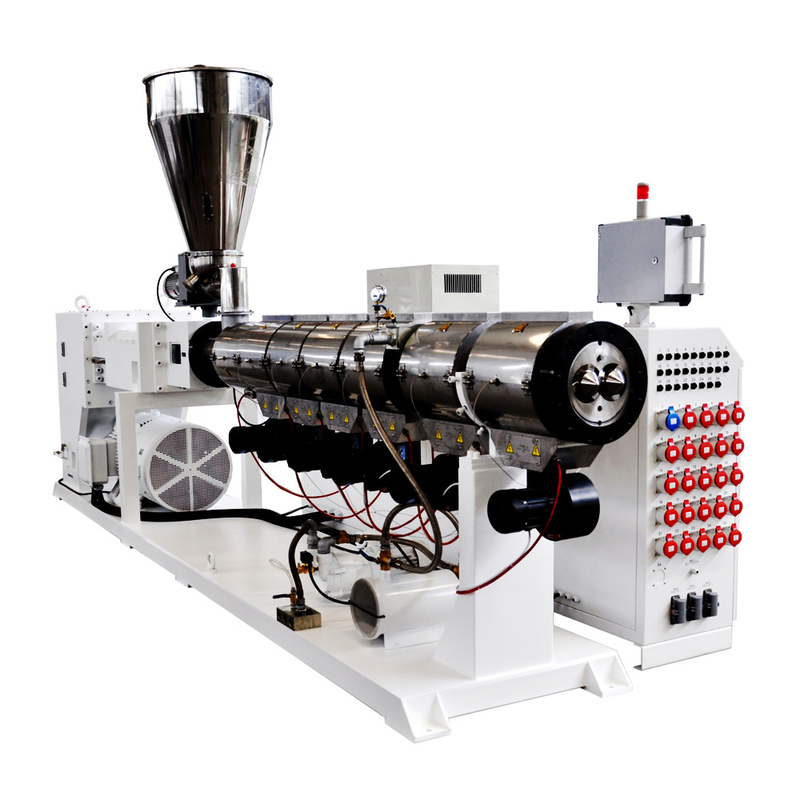

Parallel Twin Screw Extruder Picture
