Name: Twin Conic Screw PVC Extruder Machine High Output PLC Operating System
Brand: Shenzhen HYPET Co., Ltd.
SKU: PVC Extruders Machine HYZS65/132
Price: 18500 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

Twin Conic Screw PVC Extruder Machine High Output PLC Operating System

Twin Screw PVC Extruder Machine

PLC PVC Extruder Machine

PLC Double Screw Extruder Machine

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

Model Number:

PVC Extruders Machine HYZS65/132

Request A Quote

Product Details

Item:

PVC Extruders Machine

Screw & Barrel:

Different Type For Option

Operating System:

PLC

Barrel:

SKD Design With Protection Part

Gear Box:

One Body Type

Gear Cooling:

Inner +outer Two Ways

Heator:

Energy Saving Type

Main Motor:

37 / 45Kw

Highlight:

Twin Screw PVC Extruder Machine

PLC PVC Extruder Machine

PLC Double Screw Extruder Machine

Payment & Shipping Terms

Minimum Order Quantity

PVC Extruders Machine For Promotional 2022 1set

Price

18500USD/set

Packaging Details

PVC Extruders Machine LCL wooden case, FCL with film and rope fixing

Delivery Time

PVC Extruders Machine 10-30days

Payment Terms

L/C, T/T

Supply Ability

PVC Extruders Machine 20set per month

high output speed high efficent Single Screw Equipment Production Line Extruders SJ45/30 22kw 70kg/h

Get Best Price

Video

Calcium Carbonate Masterbatch PE LDPE PP HDPE Single screw Plastic Extruder Machine SJ150/30 160kw with output 450kg/h

Get Best Price

Video

New Model SJ120/30 90kw extrusding Tpu Color Masterbatch pellets profile sealer soft PVC selaer strip Single screw

Get Best Price

Video

PE PS PP ABS TPU EVA PVC Various chemical material processing machine special single screw extruder SJ90/30 75kw 220kg/h

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

PVC Extruders Machine / Twin Conic Screw PVC Extruders Machine / High output PVC Extruders Machine

PVC Extruders Machine Features:

Verticle whole body design gear box, keep efficient and more powerful, and more stable, longer life time.
Inner &outer cooling system make sure gear box working in good condition all the time.
Barrel in two part design with SKD bimetal layer, protect the screw and make sure its longer lifetime.

PVC Extruder Machine Condition using:

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	90 kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/min

PVC Extruder Machine Description:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-65/132 conic twin screw
		Output	250-350kg/h
		Center height	1000mm
		Weight	3100kg
2	Screw	Diameter	Ø65/132 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~38 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Material	38CrMoAlA with bi-metal type
		Inside finish	Nitrogen-filled (0.5~0.7mm depth) and rubbing
		Heating control area	4 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	20 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.3kwx3 sets
4	Gear box	Housing material	Ductile iron QT-500
		Gear material	20CrMnTi
		Gear surface	Hardened &ground in high precision
		Axis material	40Cr
5	Twin screw Dosing feeder	Supply material motor	1.1 kW
		Speed range	1-50 RPM
		Inverter	ABB heavy loader type
6	Vacuum degas	Vacuum degree	-0.004Mpa
6	Vacuum degas	Motor power	1.1 kW
7	Driving motor	AC motor power	30 kW
7	Driving motor	AC inverter controller	ABB
8	Electrical Control system	Control panel	PLC control system
		Extra temperature zone for die head	5 zones
		Components brand	Siemens, RKC, ABB, etc.

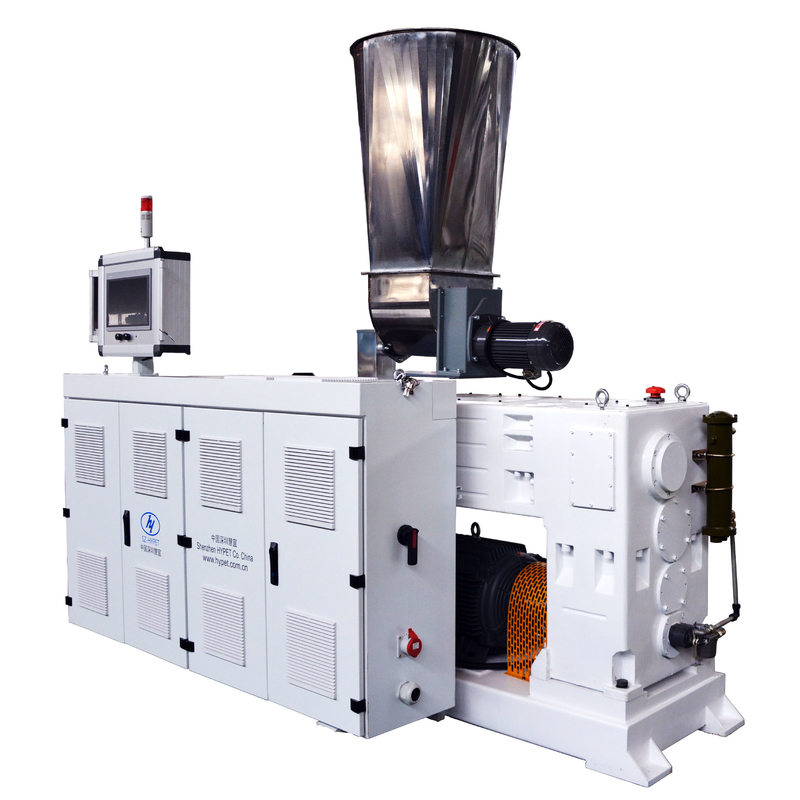

PVC Extruder Machine Photo

Twin Conic Screw PVC Extruder Machine High Output PLC Operating System 0

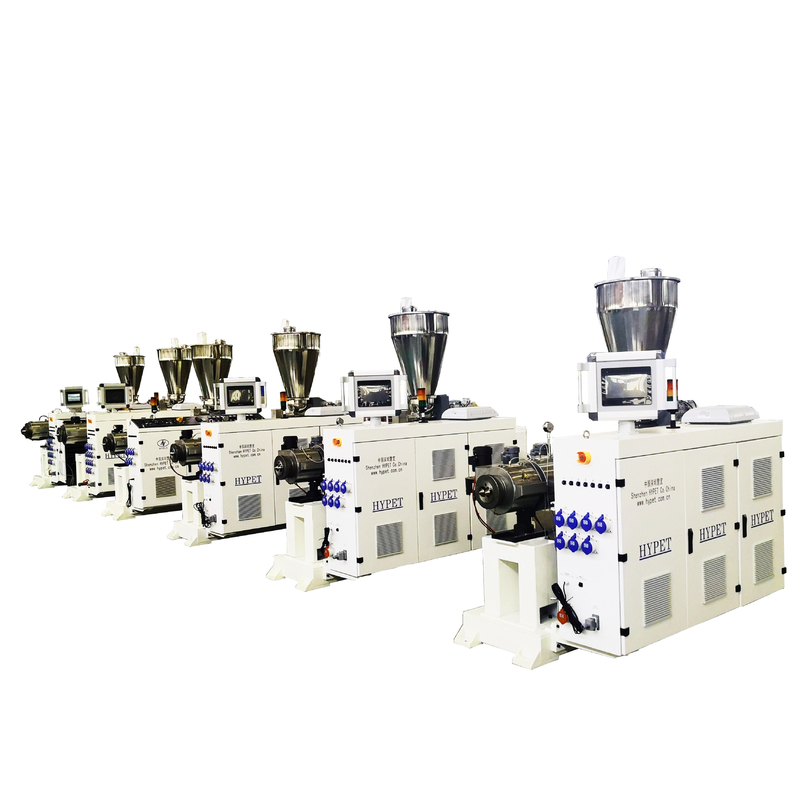

PVC Extruders Machine Factory scenery
