Plastic PVC Conical Twin Screw Extruder for 65/132 55/120 51/110 45/100 mm

Plastic PVC Conical Twin Screw Extruder for 65/132 55/120 51/110 45/100 mm

Detail Information

Place of Origin:

China

Certification:

ISO9001, CE

Packaging Details:

Standard Package for sea shipment

Supply Ability:

30sets/month

Highlight:

Product Description

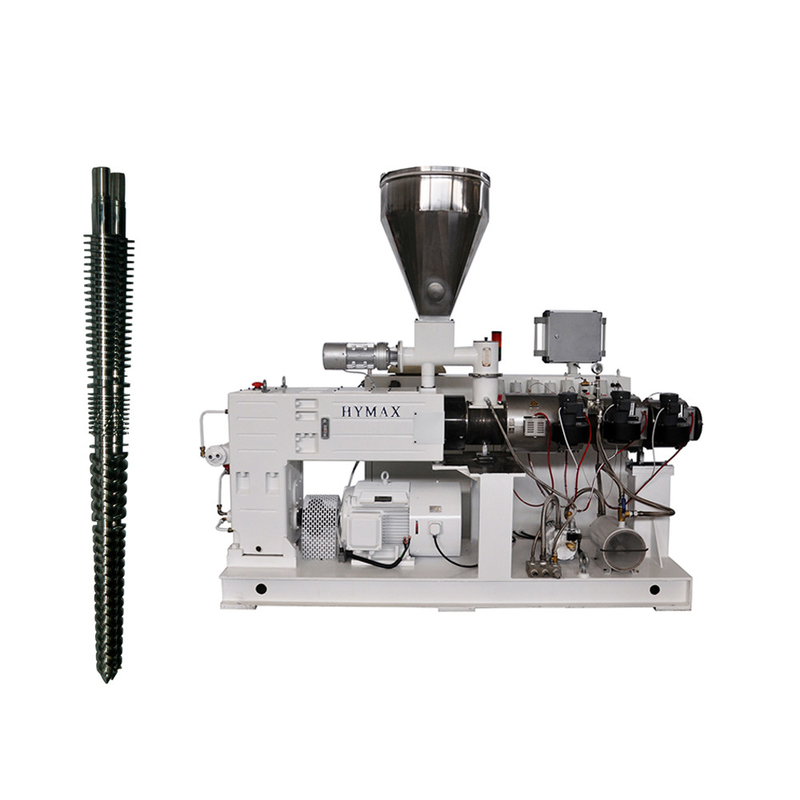

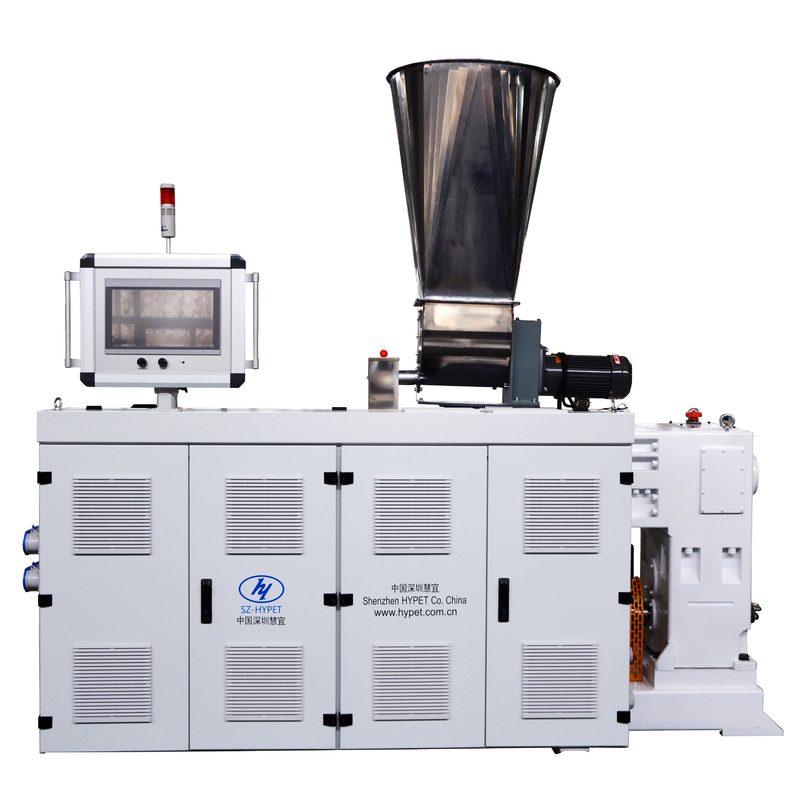

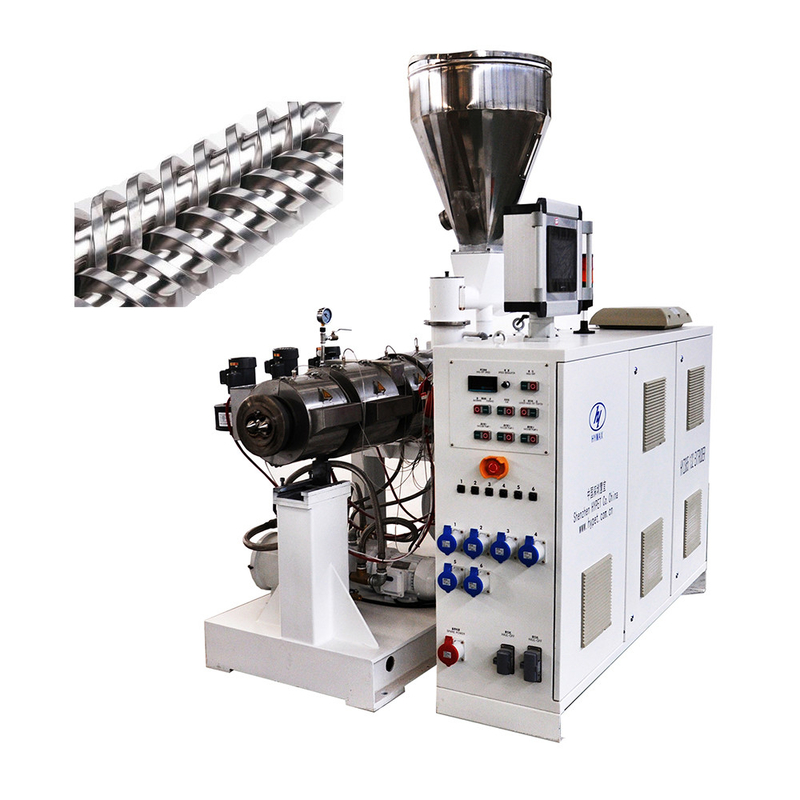

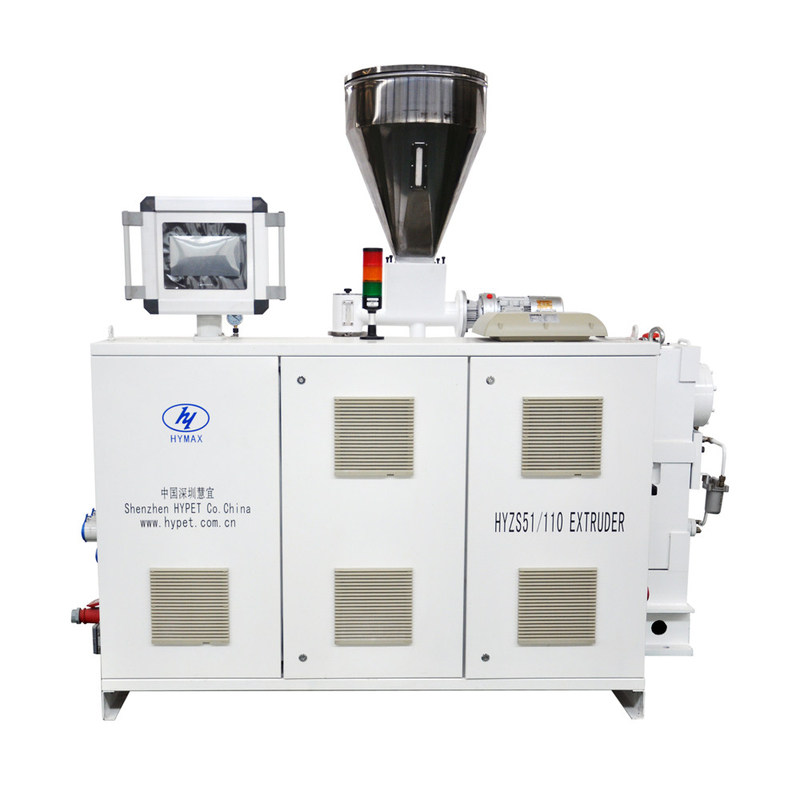

1. PVC Pipe Extruder / PVC Pipe Machine Plastic Extruder Machine 65/132 55/120 51/110 45/100 Pictures:

2. Technical specification:

SN	Items	Description
HYZS55/120 conic twin screw extruder
1	Extruder model	HYZS-55/120 conic twin screw
2	Max. output	180-220kg/h for profile
3	Center height	1,000mm
4	Weight	2700kg
5	Screw Diameter	Ø55/120 mm
6	Screw Material	38CrMoAlA + special alloy
7	Finish	Nitrogen-filled (0.50~0.70mm depth)
8	Rotate speed	0~38 r/min
9	Core of the screw	Auto control for temperature
10	Barrel Material	38CrMoAlA with bi-metal type
11	Inside finish	Nitrogen-filled (0.50~0.70mm depth)
12	Heating control area	4 areas
13	Heating way	Cast Aluminium heater
14	Heating power	15kW
15	Cooling system	Low-noisy barrel cooling fan
16	Cooling power	0.2kW *3 sets
17	Gear box Housing material	Ductile iron HT-300
18	Gear material	20CrMnTi
19	Gear surface	Hardened and ground in high precision
20	Axis material	40Cr
21	Temperature of oil	Controlled by two system
22	Rubber sealer	Imported special rubber sealer used
23	Bearings	With famous and reliable brand.
24	Dosing feeder	Twin screw feeding type
25	Motor Power	1.5 kW
26	Speed range	1-50 RPM
27	Powder bridge	Anti powder bridge with high Caco3
28	Control	heavy loader type inverter
29	Vacuum degree	-0.004Mpa
30	Vacuum degas motor power	1.5 kw
31	AC motor power	30 kW
32	AC inverter controller	Famous Delta Inverter
33	Siemens PLC system	Siemens PLC+ HYPET AI intelligence auto control system
34	Electric components	Branded in Siemens, Schneider Omron, Delta ,ABB, FUJI, and small unimportant parts in China famous brand
35	Extra temperature zone for die head	7 zones
36	display screen size	14” big size monitor
37	Electric cabinet cable	Easy to be disassemble by joints

3. More Series Conic Twin Screw Extruders:

Series Conic Twin Screw Extruders
Name	HYZS35/76	HYZS45/100	HYZS51/110	HYZS55/120	HYZS65/132	HYZS65/132	HYZS80/156	HYZS80/173	HYZS95/188	HYZS110/220
Output PVC pipe	75kg/h	110kg/h	150kg/h	250kg/h	330kg/h	450kg/h	500kg/h	650kg/h	1200kg/h	1500kg/h
Main motor	7.5 kw	15 kw	18.5 kw	30 kw	37 kw	45 kw	55 kw	75 kw	110 kw	200kw
Screw barrel type	A: Integral barrel Standard Alloy spraying B: Two parts Bimetallic sleeve C: High Cacium filler abrasion resistant
Application :	For PVC pipe profile sheet pellets and WPC / SPC/ High filler composite material processing for option
With Screw Type	A	A	A	A	A	A	A	A	A
heater and fan;	All heaters are cast Aluminum heaters and energy saving type with soundless cooling blower
Gear box	Patened harden gear box with Connected body Strong torque double circulating cooling system ensure oil temperature correct.
Dosing feeder	Big size of Steep hopper Ensure FIFO No retained material left.
Vacuum pump Kw	1.1 kw	1.5 kw	1.5 kw	1.5 kw	2.2 kw	2.2 kw	3 kw	3 kw	4 kw	5.5kw
Electric Cabinet	Standard is Siemens PLC + HYPET soft ware to control whole system, RKC contactors control system also are offered
Over all sizes mm	2000X1050X2000	2400X1150X2400	2450X1200X2400	2710X1250X2600	3000X1300X2600	3000X1300X2600	3700X1400X2750	3800X1400X2750	4750X1600X2800
Weight kg	1600	2000	2100	2300	2700	2850	4100	4600	8500	13500
