Vertical Type High Torque Double Screw Extruder Machine ZS65/132 For PVC Pipe Profile

Name: Vertical Type High Torque Double Screw Extruder Machine ZS65/132 For PVC Pipe Profile
Brand: Shenzhen HYPET Co., Ltd.
SKU: ZS65/132
Price: 17500 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	ZS65/132
MOQ:	1set
Price:	USD 17500/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, CE

Suitable Material:

PVC Powder

Control:

PLC Control System

Main Motor:

37kw

Advantage:

High Yield High Effective

Main Electrical Components:

Delta/ABB

Automatic Grade:

Fully Automatic

Barrel:

Two Parts Type

Gear Cooling:

Inner +outer Two Ways

Screw Size:

ZS65/132

Feeder Motor:

Twin Conic In 1.5kw

Body:

Whole Part Design

Heaters:

4area

Machine Color:

Hypet White Or Customized

Packaging Details:

Standard Package for sea shipment

Supply Ability:

Big output double screw extruder 150sets/year

Highlight:

High Torque Double Screw Extruder Machine

Vertical Type Double Screw Extruder Machine

PVC Pipe Double Screw Extruder

Product Description

1. PVC Pipe Extruder / PVC Pipe Machine Plastic Extruder Machine 65/132 Picture:

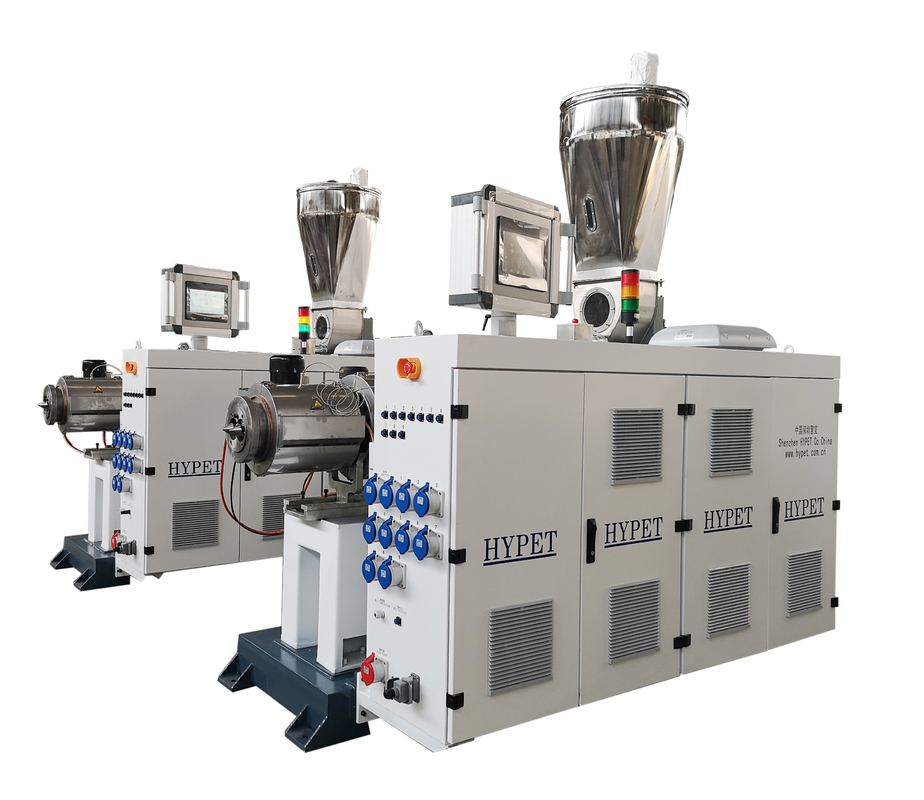

Vertical Type High Torque Double Screw Extruder Machine ZS65/132 For PVC Pipe Profile 1

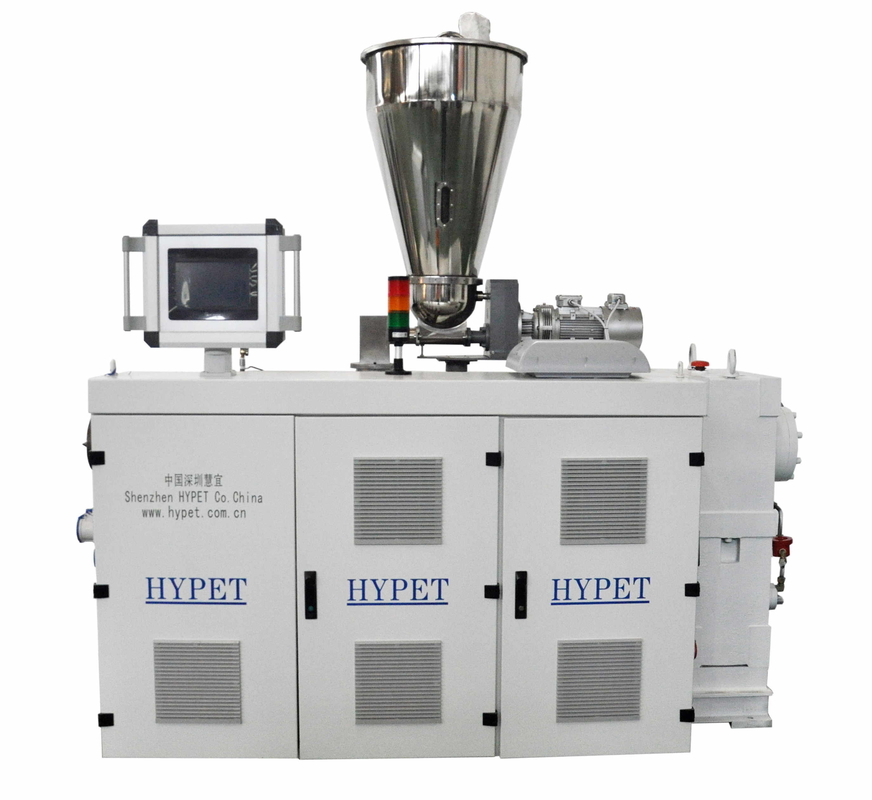

Vertical Type High Torque Double Screw Extruder Machine ZS65/132 For PVC Pipe Profile 2

Vertical Type High Torque Double Screw Extruder Machine ZS65/132 For PVC Pipe Profile 3

2.Technical specification:

SN	Items	Description
HYZS65/132 conic twin screw extruder
1	Extruder model	HYZS-65/132 conic twin screw
2	Output	330kg/h
3	Screw diameter	Ø65/132 mm
4	Screw material	38CrMoAlA + special alloy
5	Heat treatment	Nitrogen-filled (0.50~0.70mm depth)
6	Core of the screw	Auto control for temperature (Oil cooling will be for option )
7	Rotate speed	0~38 r/min
8	Barrel Structure	Bimetallic In two parts, front part will be with special alloy inserted.
9	Front part of the barrel	SKD11 with heat treatment
10	Inside finish	Nitrogen-filled (0.50~0.70mm depth)
11	Heating control area	4 zones
12	Heating way	Cast aluminum/ ceramics
13	Heating power	22 kW
14	Cooling system	Low-noisy barrel cooling fan
15	Cooling power	0.2kwx2 sets +0.3kW x 1 set
16	Temp & pressure Transducer	China famous brand with isolated cable.
17	Gear box brand	HYMAX gear box made by HYPET
18	Housing material	Ductile iron
19	Gear material	20CrMnTiA
20	Gear surface	Hardened and ground in high precision
21	Axis material	40Cr
22	Temperature of oil	Controlled by two system
23	Rubber sealer	Imported special rubber sealer used
24	Bearings	With famous and reliable brand.
25	Dosing feeder	Twin screw feeding type
26	Motor power	1.1kw
27	Speed range	1-50 RPM
28	Powder bridge	Anti powder bridge with high Caco3
29	Control	heavy loader type inverter
30	Vacuum degas motor power	2.2 kw
31	Vacuum degree	-0.04Mpa
32	Vacuum tank	Easy to be clean
33	Driving motor	AC Motor heavy type famous brand
34	Motor power	37kw
35	AC inverter controller	Famous Delta in heavy type
36	Electrical Control system	Siemens PLC+ HYPET AI auto control system
37	Electric components	Branded in Siemens, Schneider Omron, Delta /ABB, FUJI, and small unimportant parts in China famous brand
38	Extra temperature zone for die	8 zones
39	display screen size	14” big size monitor
40	Electric cabinet cable	Easy to be disassemble by joints

3. More Series Conic Twin Screw Extruders:

Series Conic Twin Screw Extruders
Name	HYZS35/76	HYZS45/100	HYZS51/110	HYZS55/120	HYZS65/132	HYZS65/132	HYZS80/156	HYZS80/173	HYZS95/188	HYZS110/220
Output PVC pipe	75kg/h	110kg/h	150kg/h	250kg/h	330kg/h	450kg/h	500kg/h	650kg/h	1200kg/h	1500kg/h
Main motor	7.5 kw	15 kw	18.5 kw	30 kw	37 kw	45 kw	55 kw	75 kw	110 kw	200kw
Screw barrel type	A: Integral barrel Standard Alloy spraying B: Two parts Bimetallic sleeve C: High Cacium filler abrasion resistant
Application :	For PVC pipe profile sheet pellets and WPC / SPC/ High filler composite material processing for option
With Screw Type	A	A	A	A	A	A	A	A	A
heater and fan;	All heaters are cast Aluminum heaters and energy saving type with soundless cooling blower
Gear box	Patened harden gear box with Connected body Strong torque double circulating cooling system ensure oil temperature correct.
Dosing feeder	Big size of Steep hopper Ensure FIFO No retained material left.
Vacuum pump Kw	1.1 kw	1.5 kw	1.5 kw	1.5 kw	2.2 kw	2.2 kw	3 kw	3 kw	4 kw	5.5kw
Electric Cabinet	Standard is Siemens PLC + HYPET soft ware to control whole system, RKC contactors control system also are offered
Over all sizes mm	2000X1050X2000	2400X1150X2400	2450X1200X2400	2710X1250X2600	3000X1300X2600	3000X1300X2600	3700X1400X2750	3800X1400X2750	4750X1600X2800
Weight kg	1600	2000	2100	2300	2700	2850	4100	4600	8500	13500

4. Terms and Condition:

1. Payment condition: Ex-works Wuhan China

2. Payment method: 30% down payment by T/T and balance should be paid by T/T before Shipment

3. Delivery period: 60 days after received the down payment.

4. Warranty: one year

5. Test:The line will be tested before shipment, running for one hour

6. Validity period: 30 days after ensured.

5. Cooperative Brands:

Vertical Type High Torque Double Screw Extruder Machine ZS65/132 For PVC Pipe Profile 4
