ZS95/188 Conic Twin Screw Extruder PVC Tube Pipe Profile Line With Siemens Touch Screen Software

PVC Profile Twin Screw Extruder

PVC Tube Twin Screw Extruder

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

ZS95/188

Request A Quote

Product Details

Barrel Material:

Nitrided Steel

Size:

4.75*1.6*2.8 M

Main Motor Power:

110 Kw

Key World:

Extruder PVC Plastic

Inverter Brand:

Siemens/ABB/China Top Brand

Capacity:

900-1000 Kg / H

Gear Surface:

Hardened And Ground In High Precision

Warranty Year:

One Year

Gear Box:

High Torque Verticle Type

Housing Material:

Ductile Iron HT-300

Screw Barel:

Bimetal

Control System:

PLC With Touch Screen

Supply:

380V 50Hz 3Phase Or Customized

Engineer Installation Service:

Yes

Highlight:

PVC Profile Twin Screw Extruder

PVC Tube Twin Screw Extruder

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 44000/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

30set/month

high output speed high efficent Single Screw Equipment Production Line Extruders SJ45/30 22kw 70kg/h

Get Best Price

Video

Calcium Carbonate Masterbatch PE LDPE PP HDPE Single screw Plastic Extruder Machine SJ150/30 160kw with output 450kg/h

Get Best Price

Video

New Model SJ120/30 90kw extrusding Tpu Color Masterbatch pellets profile sealer soft PVC selaer strip Single screw

Get Best Price

Video

PE PS PP ABS TPU EVA PVC Various chemical material processing machine special single screw extruder SJ90/30 75kw 220kg/h

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

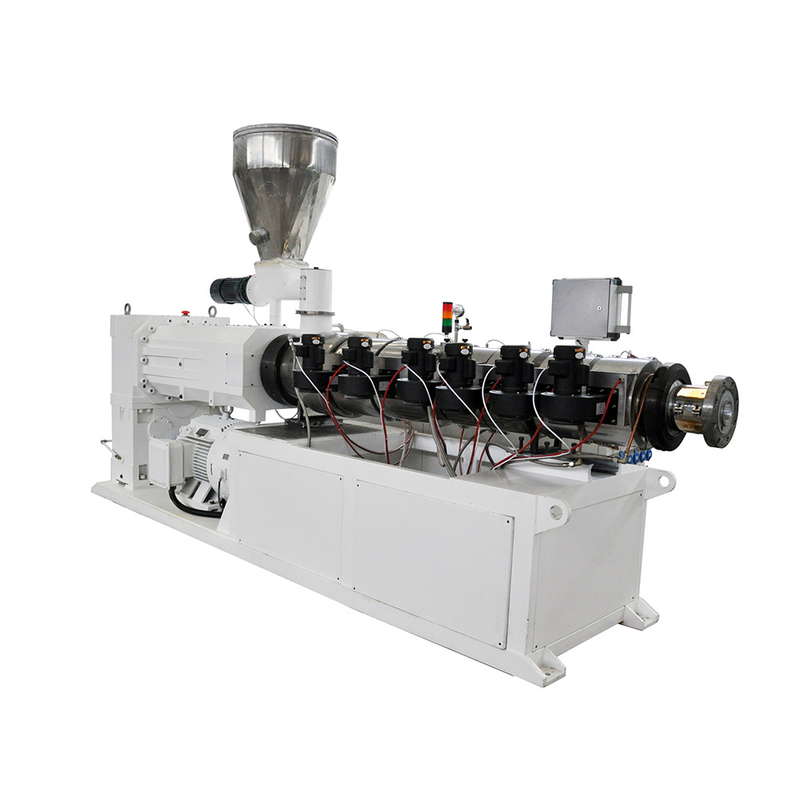

ZS95/188 Conic Twin Screw Extruder PVC Tube Pipe Profile Line With Siemens Touch Screen Software 0

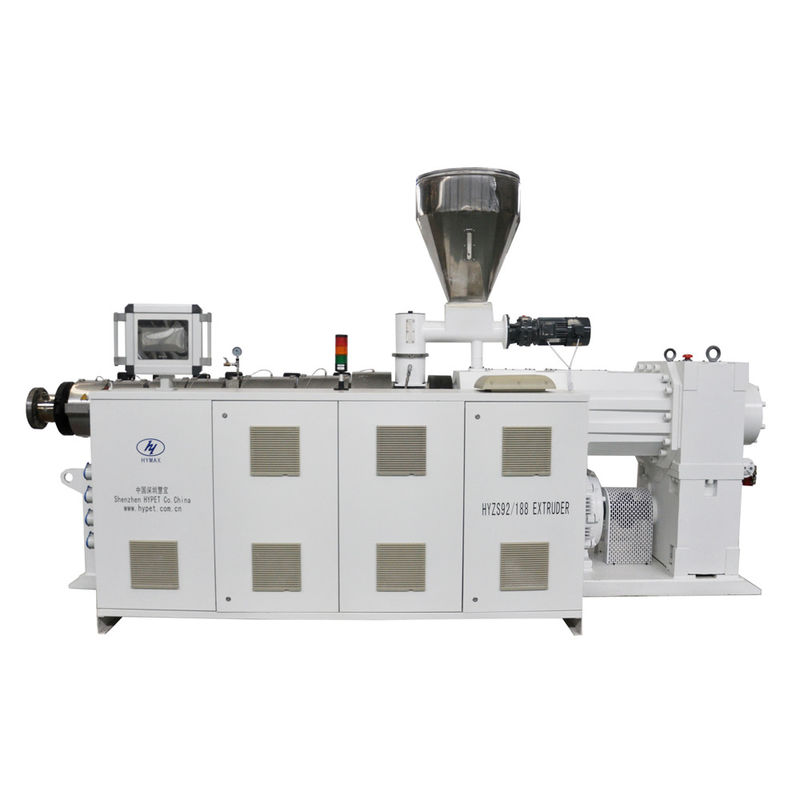

ZS95/188 Conic Twin Screw Extruder PVC Tube Pipe Profile Line With Siemens Touch Screen Software 1

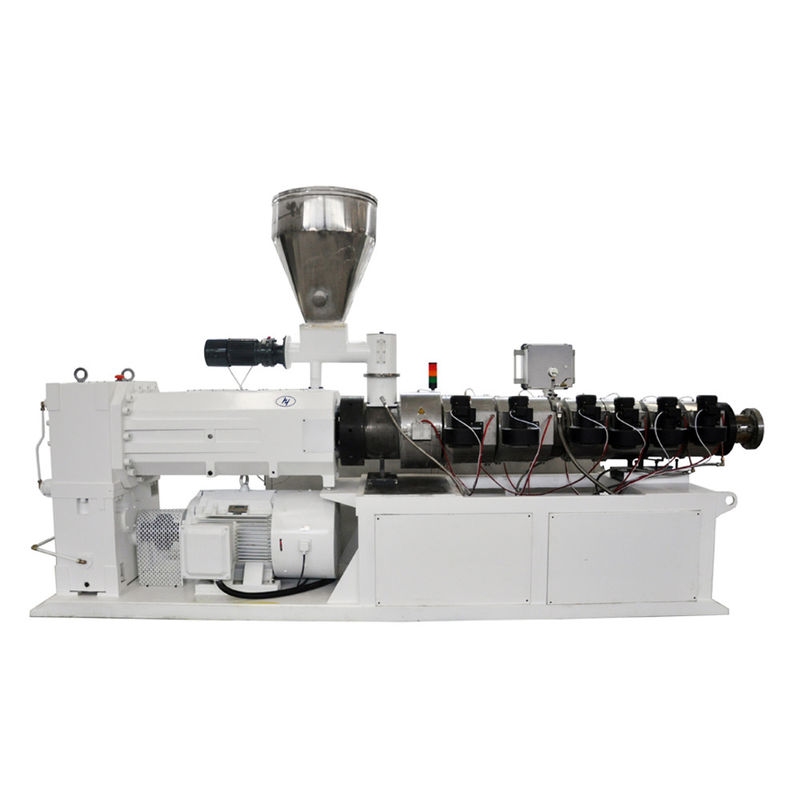

ZS95/188 Conic Twin Screw Extruder PVC Tube Pipe Profile Line With Siemens Touch Screen Software 2

Condition of use:

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	300 kW
		Actual consumption	200 kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
		Flow	~0.9 m³/min

HYZS-95/188 conic twin screw extruder:

SN	Parts name	Image	Specification	Description
1	Extruder		Extruder model	HYZS92/188 conic twin screw
			Output	900-1000kg/h
			Center height	1,200mm
			Weight	7,100kg
	*Features*	1. Extruder mounted on rigid structural steel frame. 2. Vacuum degassing system along with dust collector having bypass system & Vacuum pump. 3. Display of heating current for each temperature zone, manual override on all zones in case of sensor failure. 4. Drive control panel, equipped with panel water cooler, placed besides heating control panel with Independent Isolator for essential power supply. 5. Plug & Socket for Die head heating zones, Connecting head & Melt temperature indicator. 6. Other eclectic and pneumatic components are made in world famous brand such as Siemens ABB, RKC etc.
2	Screw		Diameter	Ø95/188 mm
			Material	38CrMoAlA + special alloy
			Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
			Rotate speed	0~38 r/min
			Core of the screw	Auto control for temperature
	*Features*	Screw has internal closed loop heat balancing system by means of distilled water.
3	Barrel		Material	38CrMoAlA with bi-metal type
			Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
			Heating control area	6 areas
			Heating way	Copper cooling fins with ceramic heater
			Heating power	45 kW
			Cooling system	Low-noisy barrel cooling fan
			Cooling power	0.3kW3 + 0.5kW2
	*Features*	Barrel and screw Nitro Alloy with bi-metal type for longer working life.

4	Gear box		Housing material	Ductile iron QT-500
			Gear material	20CrMnTi
			Gear surface	Hardened and ground in high precision
			Axis material	40Cr
	*Features*	1. Gear box housing is made of high quality Ductile iron QT-500. 2. Lubricating pump with Heat Exchanger, oil filter and oil flow indicator are provided for force lubrication of Thrust Gear box. The gears and bearings are forced lubricated. Gear box lube oil is circulated in a closed loop through heat exchanger to maintain optimum oil temperature in gearbox. 3. The harden and ground gear box is made with German technology. 4. Twin output shaft Helical Gear Box. Gears are hardened and ground. Both output shafts are integral with high capacity thrust bearings to absorb axial thrust generated during the extrusion process
5	Dosing feeder		Supplying material motor	2.2 kW
			Speed range	1-50 RPM
			Inverter	ABB/Delta
	*Features*	Feeding system with twin screw structure to avoid stagnant material.
6	Vacuum degas with selector		Vacuum degree	-0.004Mpa
			Motor power	4 kW
7	Driving motor		AC motor power	110 kW
			AC inverter controller	ABB/Delta
8	Electrical Control system		Control panel	PLC computer control system
			Extra temperature zone for die head	15 zones
			Components brand	Siemens, RKC, ABB, etc.

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
Company email :	info@hypet.com.cn
