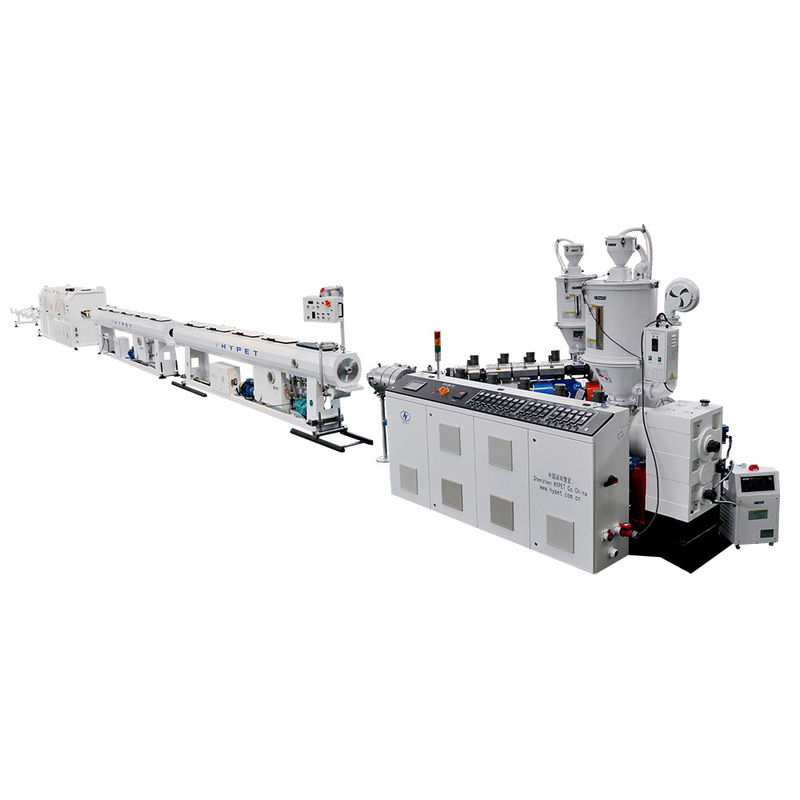

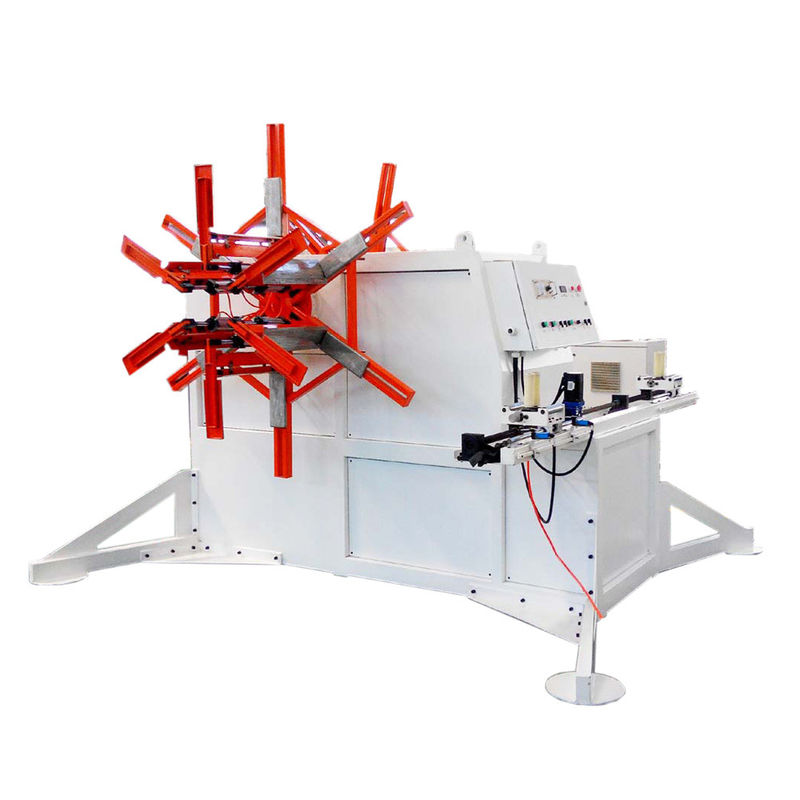

Reliable Quality 16-63mm HDPE Plastic Production Line 2024 High Speed PE Pipe Extruder Making Machine

SN

Items

Speciality

1

High Output

180 kg/h,  The most efficient designed line on output /cost

2

Weighing system

Gravimetric system by Chinese brand, German one can be option

3

Vacuum Tank

1, ALL are made by 304 Stainless steel material without painting.

2, water level and vacuum are controlled automatically

3, Install vacuum pressure relief muffler to realize that the sound of the

4

Haul off

1, 2 claws type haul off to ensure stable haul off force.

2, Driven by servo  motor and controlled by PLC system

3, Haul off Gear box are strong with harden gear surface.

5

Cutter

1, Fly cutter device

2, with servo following system to ensure the pipe speed when cutting.

SN

Parts name


Specification

Description

1

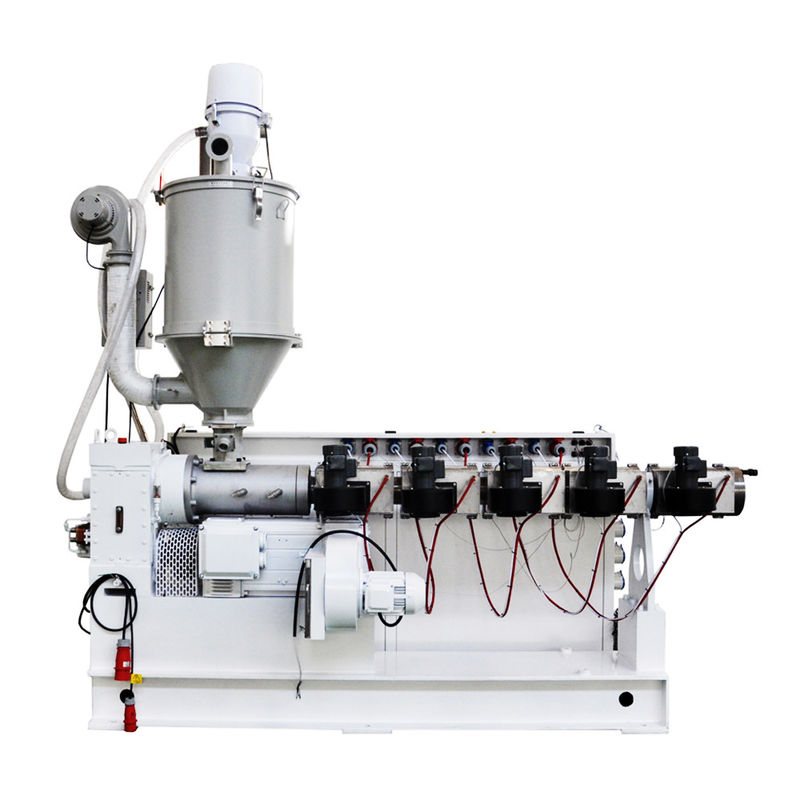

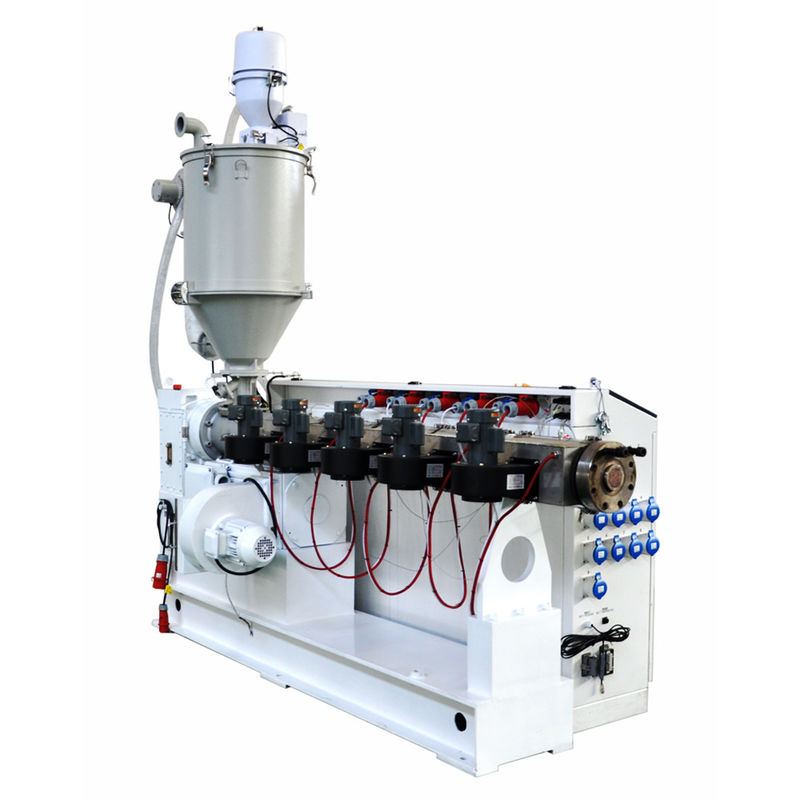

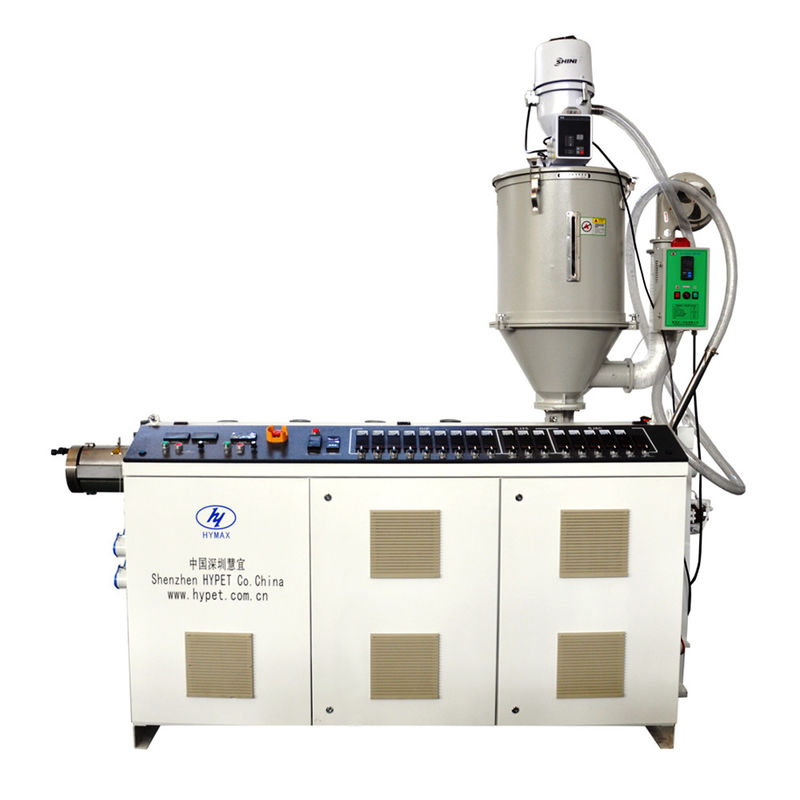

Extruder

Extruder model

HYSJ-60/38 single screw

Output Max

360 kg/h

Center height

1,000mm

Weight

2,300kg

2

Screw

Diameter

Ø60 mm

Screw ID ratio

38:1

Material

38CrMoAlA + special alloy

Finish

Nitrogen-filled (0.50~0.70mm depth) and polish

Max rotate speed

187 r/min

Core of the screw

Auto control for temperature

Features

1. German technology design, to ensure the highest output and good good plasticizing at the same power.

2. 38CrMoAlA nitriding HV900, depth 0.4-0.6mm surface sprayed alloy；

3

Barrel

Material

Bimetal barrel inside in two layers

Inside finish

Nitrogen-filled (0.50~0.70mm depth)

Heating control area

5 areas

Heating way

Cast aluminum heater

Heating power

18 kW

Cooling system

Low-noisy barrel cooling fan

Cooling power

0.2kW x 5 sets

Features

1. Inner casting alloy bimetal barrel can ensure 24 months；

2. With HYPET special feeding device, with large feeding quantity, good cooling, easy replacement, low maintenance costs.

3. Adopt cast aluminum heaters, high cost but fast heating, high temperature can be controlled.

4

Gear box

Housing material

Ductile iron QT-500

Gear material

20CrMnTi

Gear surface

Hardened and ground in high precision

Axis material

40Cr

5

Driving motor

AC motor power

45 kW

AC inverter controller

Siemens brand

6

Electrical Control system

PLC system

Whole Siemens PLC control system with HYPET soft ware.

Control cabinet

Detachable

Electric components brand

Siemens, Schneider,  RKC, ABB, FUJI and good Chinese brnd etc.

Extra temperature zone

3 zones

Electric cabinet feature

1, all cable and  connectors are with Wire aviation plug

2, all cables and senses cables are strong enough with long life .

3. With air conditioner;
