Lab Mini Twin-Screw Compounding Conical Plastic Extruder ZS35/76 Small Double Screw Extruder Co-extrusion

Name: Lab Mini Twin-Screw Compounding Conical Plastic Extruder ZS35/76 Small Double Screw Extruder Co-extrusion
Brand: Shenzhen HYPET Co., Ltd.
SKU: ZS35/76
Price: 10000 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	ZS35/76
MOQ:	1set
Price:	USD 10000/set
Delivery Time:	Extruder PVC Plastic 35~45days
Payment Terms:	L/C, , T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, CE

Gear Surface:

Hardened And Ground In High Precision

Condition:

New

Machine Color:

Hypet White Or Customized

Key World:

Extruder PVC Plastic

Screw Design:

Conic Twin Screw

Main Motor Brand:

Siemens

Gear Box Type:

Vertical Reducer

Heater:

Electrical + Ceramic

Screw Size:

OD35/76mm

Heating System:

Electrical Heating

Material:

Stainless Steel

Control Sytem:

PLC

Output PVC Pipe:

75kg/h

Main Motor:

7.5 Kw

Over All Sizes Mm:

2000X1050X2000

Weight Kg:

1600

Packaging Details:

Standard Package for sea shipment

Supply Ability:

Extruder PVC Plastic 50sets/month

Highlight:

Twin-Screw Conical Plastic extruder

Lab Mini Conical Plastic extruder

co-extrusion Small Double Screw Extruder

Product Description

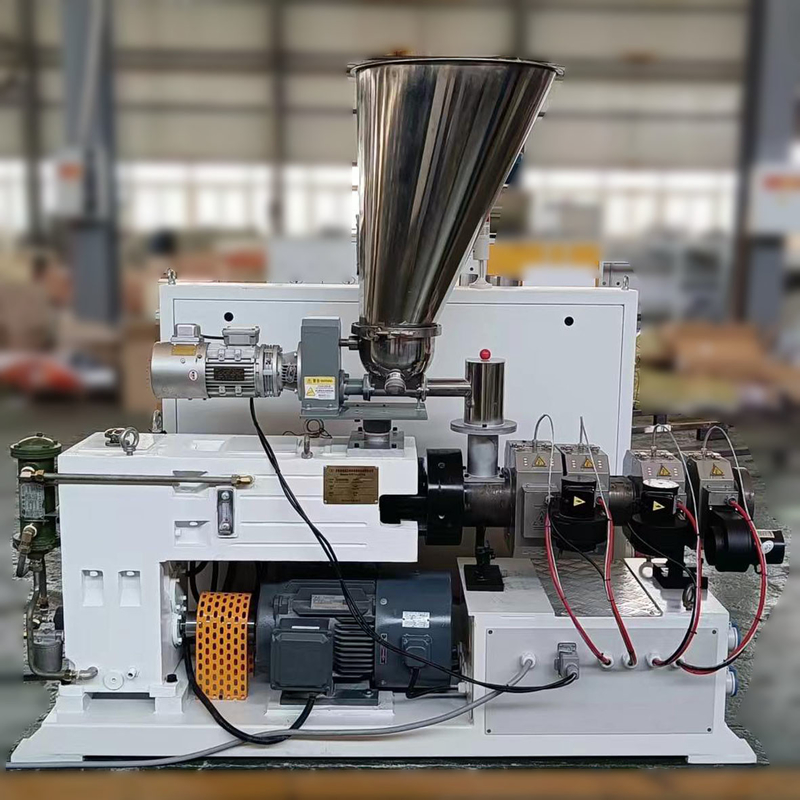

1. PVC Pipe Extruder / PVC Pipe Machine Plastic Extruder Machine ZS35/76 Pictures:

Lab Mini Twin-Screw Compounding Conical Plastic Extruder ZS35/76 Small Double Screw Extruder Co-extrusion 0

Lab Mini Twin-Screw Compounding Conical Plastic Extruder ZS35/76 Small Double Screw Extruder Co-extrusion 1

Lab Mini Twin-Screw Compounding Conical Plastic Extruder ZS35/76 Small Double Screw Extruder Co-extrusion 2

Lab Mini Twin-Screw Compounding Conical Plastic Extruder ZS35/76 Small Double Screw Extruder Co-extrusion 3

2. Speciality of HYPET Conic Twin Screw Extruder:

SN	Items	Speciality
1	High Output	For PVC pipe, 70-80 kg/h, for Profile 40- 55kg/h more
2	Energy saving	Energy saving in heaters & driving Transmission system & Plasticizing by 15-20% Main motor only 7.5kw
3	High quaity in machine parts	ABB heavy type inverter, Siemens Schnaider, Omron,Rkc components ,Siemens Motor, Anti-Bridge twin screw dosing feeder. Big Volume Electric cabinet with good cooling device.
4	HYPET Gear Box	High torque, Lower oil temperature control , low noise,and non leakage of oil.

3.Technical specification:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-35/76 conic twin screw
		Output	70-80kg/h for pipe 40-55kg/h for profile or more
		Center height	1000mm
		Dimension	1980 x 1050 x 2000mm
		Weight	1200kg
2	Screw	Diameter	Ø35/76 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~48 r/min
		Core of the screw	Auto control for temperature (Oil cooling will be for option )
3	Barrel	Barrel Structure	Special alloy on the surface
		Big Part of the barrel	38CrMoAlA
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)

4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display

5	Heater and cooling fans	Heating control area	3 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	8 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.2kwx2 sets
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	Wih famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	0.5 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	ABB heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	0.75 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	7.5 kW in Siemens brand
		AC inverter controller	ABB in heavy type

10	Electrical Control system	Temperature controller	RKC brand made in Japan
		Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
		Extra temperature zone for die head	5 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy .

4. More Series Conic Twin Screw Extruders:

Series Conic Twin Screw Extruders
Name	HYZS35/76	HYZS45/100	HYZS51/110	HYZS55/120	HYZS65/132	HYZS65/132	HYZS80/156	HYZS80/173	HYZS95/188	HYZS110/220
Output PVC pipe	75kg/h	110kg/h	150kg/h	250kg/h	330kg/h	450kg/h	500kg/h	650kg/h	1200kg/h	1500kg/h
Main motor	7.5 kw	15 kw	18.5 kw	30 kw	37 kw	45 kw	55 kw	75 kw	110 kw	200kw
Screw barrel type	A: Integral barrel Standard Alloy spraying B: Two parts Bimetallic sleeve C: High Cacium filler abrasion resistant
Application :	For PVC pipe profile sheet pellets and WPC / SPC/ High filler composite material processing for option
With Screw Type	A	A	A	A	A	A	A	A	A
heater and fan;	All heaters are cast Aluminum heaters and energy saving type with soundless cooling blower
Gear box	Patened harden gear box with Connected body Strong torque double circulating cooling system ensure oil temperature correct.
Dosing feeder	Big size of Steep hopper Ensure FIFO No retained material left.
Vacuum pump Kw	1.1 kw	1.5 kw	1.5 kw	1.5 kw	2.2 kw	2.2 kw	3 kw	3 kw	4 kw	5.5kw
Electric Cabinet	Standard is Siemens PLC + HYPET soft ware to control whole system, RKC contactors control system also are offered
Over all sizes mm	2000X1050X2000	2400X1150X2400	2450X1200X2400	2710X1250X2600	3000X1300X2600	3000X1300X2600	3700X1400X2750	3800X1400X2750	4750X1600X2800
Weight kg	1600	2000	2100	2300	2700	2850	4100	4600	8500	13500

Terms and Condition:

1. Payment condition: Ex-works Wuhan China

2. Payment method: 30% down payment by T/T and balance should be paid by T/T before Shipment

3. Delivery period: 60 days after received the down payment.

4. Warranty: one year

5. Test:The line will be tested before shipment, running for one hour

6. Validity period: 30 days after ensured.
