Name: Parrallel Twin Screw Extruder With Intergral Reducer Counter Rotating Pvc Pipe Granules Making Machine HYPS67/27
Brand: Shenzhen HYPET Co., Ltd.
SKU: PS67/27
Price: 24500 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

Parrallel Twin Screw Extruder With Intergral Reducer Counter Rotating Pvc Pipe Granules Making Machine HYPS67/27

intergral reducer Parrallel Twin Screw Extruder

counter rotating Parrallel Twin Screw Extruder

Pvc Pipe Granules Making Machine

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001, CE

Model Number:

PS67/27

Request A Quote

Product Details

Gear Surface:

Hardened And Ground In High Precision

Condition:

New

Machine Color:

Hypet White Or Customized

Key World:

Extruder PVC Plastic

Screw Design:

Parallel Twin Screw

Main Motor Brand:

Siemens

Gear Box Type:

Vertical Reducer

Heater:

Electrical + Ceramic

Screw Size:

67/27mm

Heating System:

Electrical Heating

Material:

Stainless Steel

Control Sytem:

PLC

Output PVC Pipe:

280-330kg/h

Main Motor:

30 Kw

Over All Sizes Mm:

3950x1200x2600

Weight Kg:

3200

Engineer Installation Service:

Yes

Highlight:

intergral reducer Parrallel Twin Screw Extruder

counter rotating Parrallel Twin Screw Extruder

Pvc Pipe Granules Making Machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 24500/set

Packaging Details

Standard Package for sea shipment

Delivery Time

Plastic Extruder with parallel screw 35~45days

Payment Terms

L/C, , T/T

Supply Ability

Plastic Extruder with parallel screw 50sets/month

Screw Length 1820 Mm Plastic Extruder Machine with 2 Screws and 1-36.9r/min Screw Speed

Get Best Price

380V Optional Double Screw Extruder Machine for Customizable Plastic Production

Get Best Price

Conical Double Screw Design Plastic Extruder Machine for and Recycling Water Cooling at 15m/min Speed

Get Best Price

DELING Gearbox Conical Double Screw Extruder Machine for Precise and Consistent Output

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

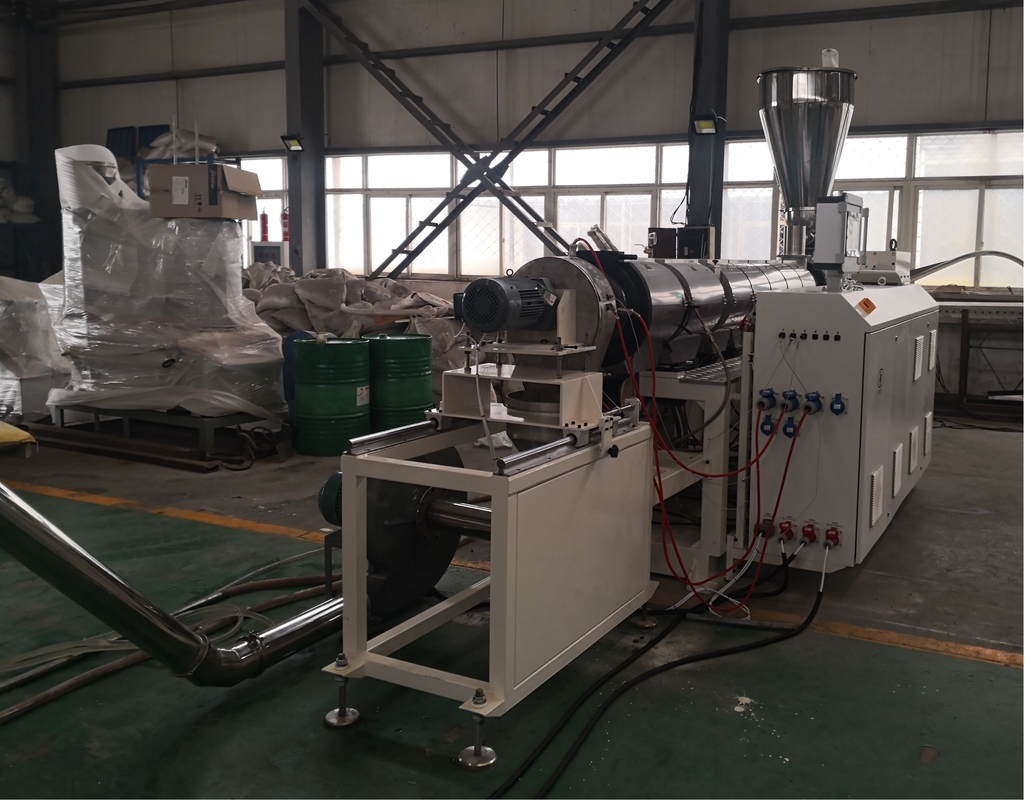

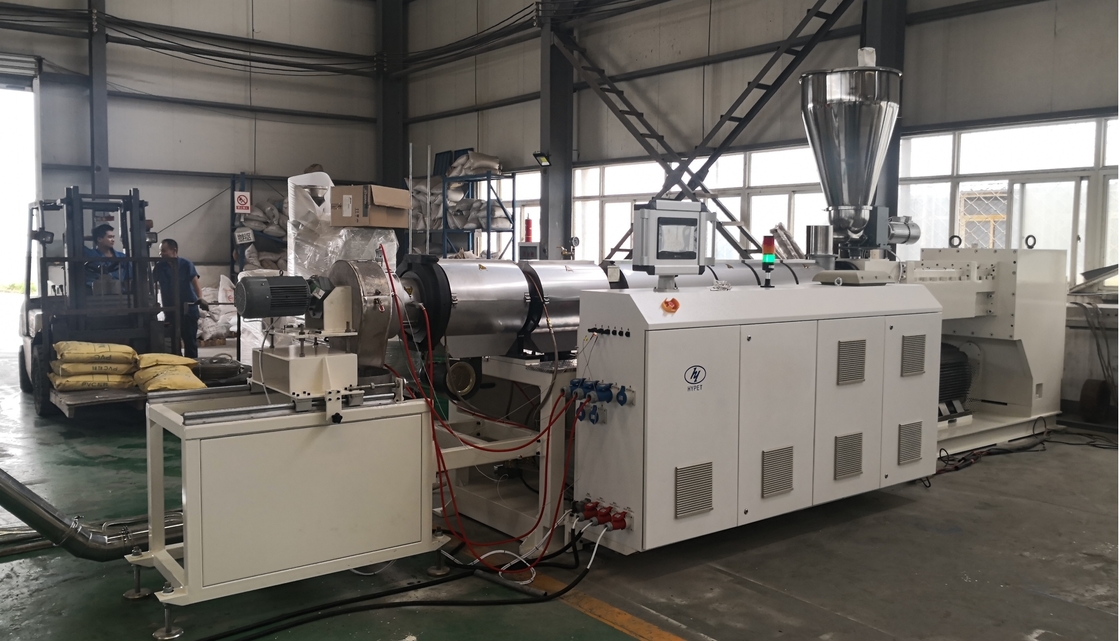

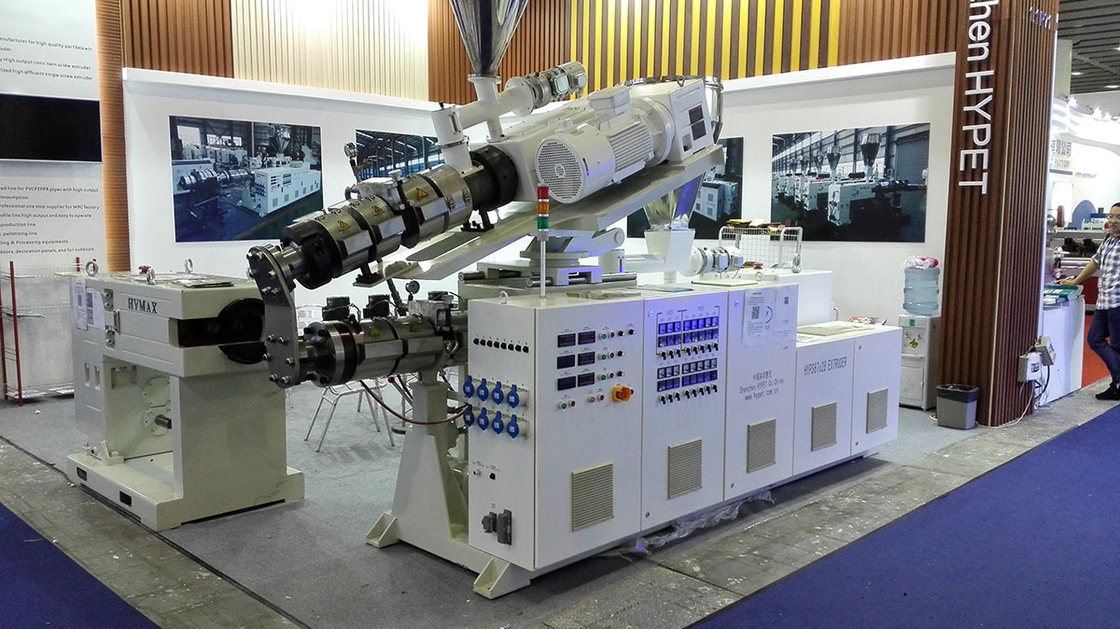

1. PVC Pipe/Profile/Granuels Extruder making Machine PS67/27 Pictures:

Parrallel Twin Screw Extruder With Intergral Reducer Counter Rotating Pvc Pipe Granules Making Machine HYPS67/27 0

Parrallel Twin Screw Extruder With Intergral Reducer Counter Rotating Pvc Pipe Granules Making Machine HYPS67/27 1

Parrallel Twin Screw Extruder With Intergral Reducer Counter Rotating Pvc Pipe Granules Making Machine HYPS67/27 2

2. Speciality of HYPET Parallel Twin Screw Extruder:

SN	Items	Speciality
1	High Output	330kg/h
2	Energy saving	Energy saving in heaters & driving Transmission system & Plasticizing by 15-20% Main motor only 30kw
3	High quaity in machine parts	ABB heavy type inverter, Siemens Schnaider, Omron,Rkc components ,Siemens Motor, Anti-Bridge twin screw dosing feeder. Big Volume Electric cabinet with good cooling device.
4	HYPET Gear Box	High torque, Lower oil temperature control , low noise,and non leakage of oil.

3.Technical specification:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYPS-67/27 Parallel twin screw
		Output	280-330kg/h
		Center height	1,000mm
		Weight	3,200kg
2	Screw	Diameter	Ø67/27 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	45 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Material	38CrMoAlA with bi-metal type
		Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
		Heating control area	5 areas
		Heating way	Copper cooling fins with ceramic heater
		Heating power	24 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.2 kW x 4 sets
4	Gear box	Housing material	Ductile iron QT-500
		Gear material	20CrMnTi
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
5	Dosing feeder	Supplying material motor	1.1 kW
		Speed range	1-50 RPM
		Inverter	ABB
6	Vacuum degas with selector	Vacuum degree	-0.004Mpa
6	Vacuum degas with selector	Motor power	1.5 kW

7	Driving motor	AC motor power	30 kW
7	Driving motor	AC inverter controller	ABB
8	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
		Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
		Extra temperature zone for die head	6 zones
