Name: Big Output PS107 120 135 /28 Parallel Twin Screw Extruder PVC Tube Pipe Profile Granulator Pelletizing Extruder Machines
Brand: Shenzhen HYPET Co., Ltd.
SKU: PS107 120 135 /28
Price: 54,000.00 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

Big Output PS107 120 135 /28 Parallel Twin Screw Extruder PVC Tube Pipe Profile Granulator Pelletizing Extruder Machines

PVC Pipe Pelletizing Extruder Machines

Big output parallel twin screw extruder

PVC Tube Pelletizing Extruder Machines

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001, CE

Model Number:

PS107 120 135 /28

Request A Quote

Product Details

Gear Surface:

Hardened And Ground In High Precision

Condition:

New

Machine Color:

Hypet White Or Customized

Key World:

Extruder PVC Plastic

Screw Design:

Parallel Twin Screw

Main Motor Brand:

Siemens

Gear Box Type:

Vertical Reducer

Heater:

Electrical + Ceramic

Screw Size:

107/28mm

Heating System:

Electrical Heating

Material:

Stainless Steel

Control Sytem:

PLC

Output PVC Pipe:

800kg/h

Main Motor:

90 Kw

Over All Sizes Mm:

6000X1500X2800

Weight Kg:

6600

Engineer Installation Service:

Yes

Highlight:

PVC Pipe Pelletizing Extruder Machines

Big output parallel twin screw extruder

PVC Tube Pelletizing Extruder Machines

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 44000-64000/set

Packaging Details

Standard Package for sea shipment

Delivery Time

Plastic Extruder with parallel twin double screw 35~45days

Payment Terms

L/C, , T/T

Supply Ability

Plastic Extruder with parallel twin double screw 50sets/month

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

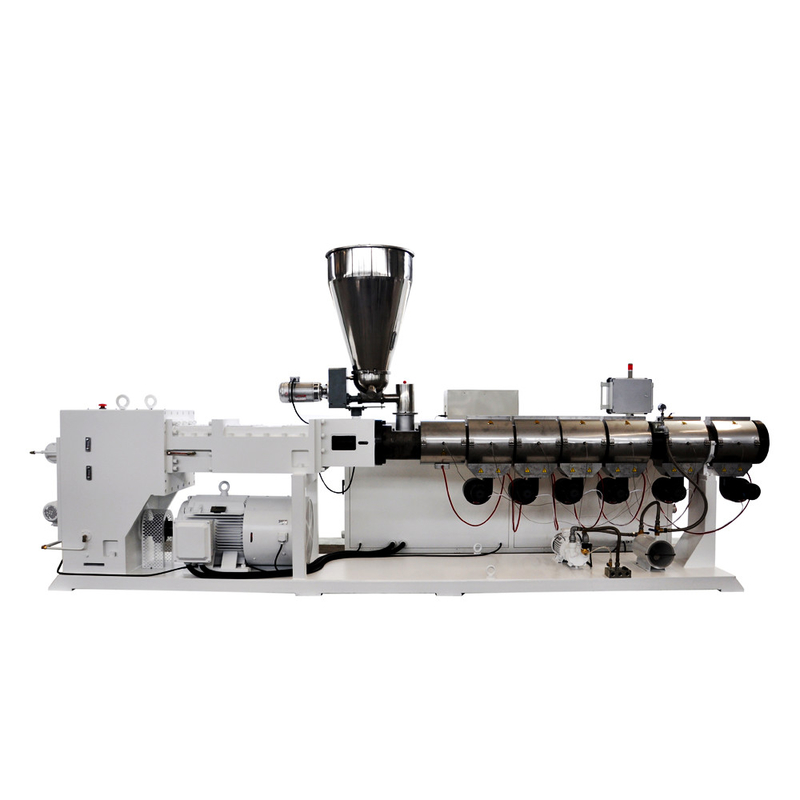

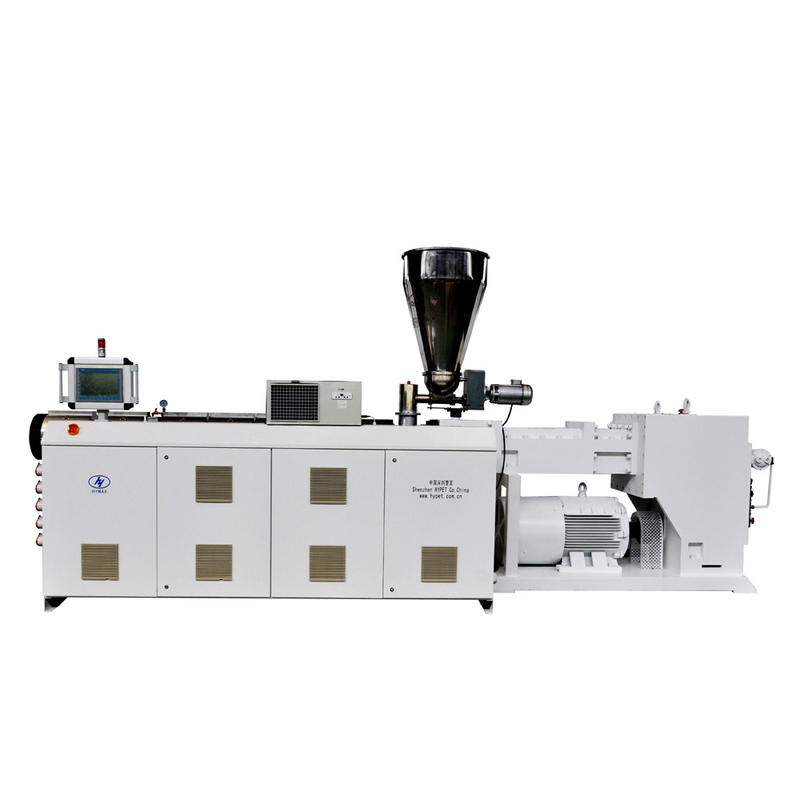

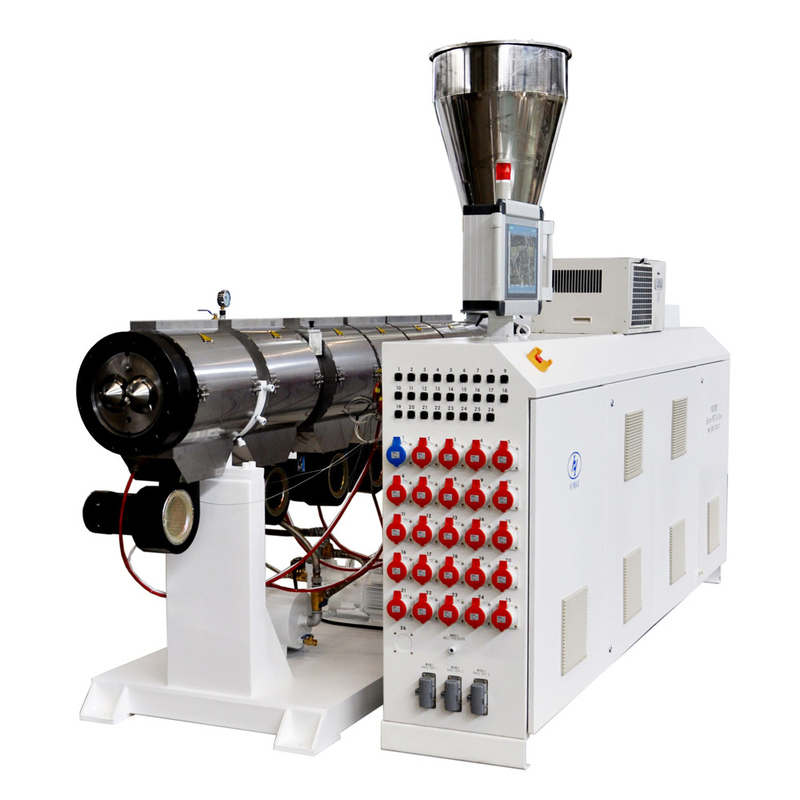

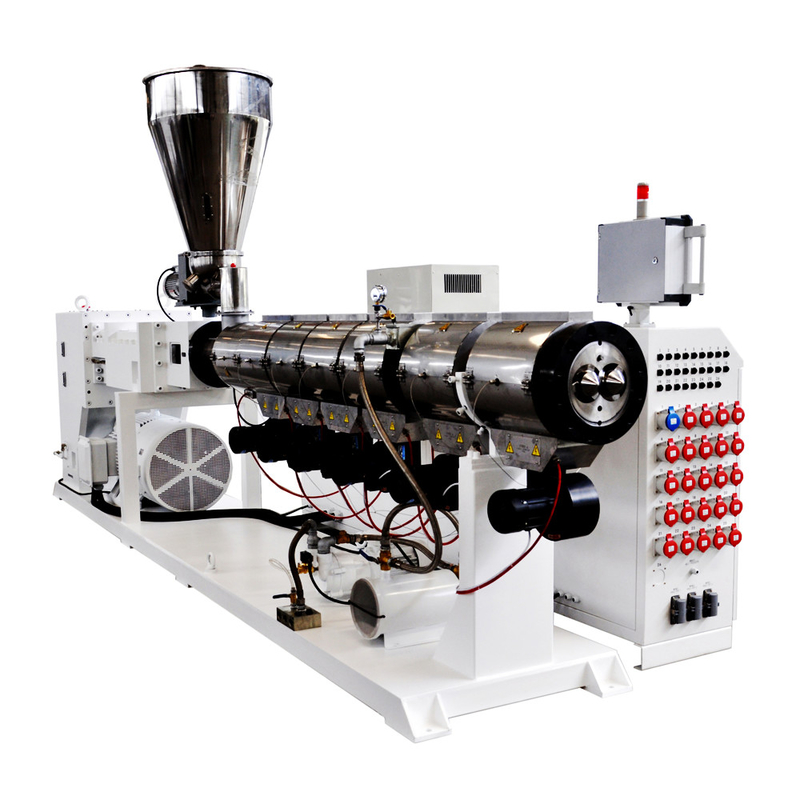

1. PVC Pipe/Profile/Granuels Extruder making Machine PS107/28 Pictures:

2. Speciality of HYPET Parallel Twin Screw Extruder:

Items

specification

Features	High output	600-800 kg/h
	High efficient	Stable quality, efficient operation make high qualified
	Energy saving	It can save energy 20-30% by machine and software.
	Intelligent AI control	PLC + HYPET software to control the operation automatically and save each formulation case.
Machine information	Products	for PVC pipe, profile ,sheet transparent pellets
	Raw material	PVC with additives mixed powder
	Output Max	800kg/h
Working condition	Electric power	3-phase, 380v +/- 10% , 50Hz (others for option)
	Installed power	150kw
	Cooling water	≤ 20°C ≥ 0.3Mpa
	Compressed water	＞ 0.3m3/min, ＞ 0.5Mpa
	Overall sizes ( LWH)	6000* 1500*2800 mm
Machine General explanation	Center height	1150mm
	Operation direction	From right to the left ( other can be for option )
	Output	The output capacity varies with the materials and the operation conditions.
	Technology remarks	remains the right to improve the specification of the line, if there is any modification in the future, customer will not be informed.

3.Technical specification:

SN	name		Specification	Description
1	Extruder		Extruder model	HYPS-107/28 parallel twin screw
			Max. output	800 kg/h
			Center height	1,150mm
			Weight	6,800kg
2	Screw		Diameter	Ø107 mm
			Material	38CrMoAlA + special alloy
			Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
			Rotate speed	0~45 r/min
			Core of the screw	Auto control for temperature
	*Features*	Screw has internal closed loop heat balancing system by means of distilled water.
3	Barrel		Material	38CrMoAlA with bi-metal type
			Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
			Heating control area	6 areas
			Heating way	Cast Aluminium heater
			Heating power	45 kW
			Cooling system	Low-noisy barrel cooling fan
			Cooling power	0.55kW *4
	*Features*	Barrel and screw Nitro Alloy with bi-metal type for longer working life.
4	Gear box		Housing material	Ductile iron QT-500
			Gear material	20CrMnTi
			Gear surface	Hardened and ground in high precision
			Axis material	40Cr
5	Melt pressure/ Temp		Melt pressure	0-50Mpa measuring
			Melt Temperature	0-400°C measuring
			Melt shows	Separately
6	Dosing feeder		Supplying material motor	1.5 kW
			Speed range	1-50 RPM
			Inverter	Delta inverter
7	Vacuum degas with selector		Vacuum degree	-0.004Mpa
7	Vacuum degas with selector		Motor power	3.2 kW
8	Driving motor		AC motor power	90 kW
8	Driving motor		AC inverter controller	Famous Delta in heavy load type

9	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
		Electric components	Branded in Siemens, Schneider RKC Omron, Delta /ABB FUJI, and etc
		Extra temperature zone for die head	12 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2,electric cabinet can be disassembled with easily. 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy .

5.Cooperative Brands:

6.Exhibition:
