Name: 10-50mm Transparent steel wire strengthen soft PVC hose in two layers of PVC one layer steel wire for pressure applicati
Brand: Shenzhen HYPET Co., Ltd.
SKU: 10-50mm PVC steel wire reinforced hose line
Price: 28500 USD
Availability: InStock

Home > products > Plastic Pipe Extrusion Line >

10-50mm Transparent steel wire strengthen soft PVC hose in two layers of PVC one layer steel wire for pressure applicati

Pressure applicati soft PVC hose

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

10-50mm PVC steel wire reinforced hose line

Request A Quote

Product Details

Keywords:

10-50mm PVC Steel Wire Reinforced Hose

Final Product:

PVC Soft Hose

Pipe Range:

10-50mm

Extruder Type:

Single Screw Extruder

Control System:

PLC With Touch Screen

Processing Material:

PVC Pellets

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

Pressure applicati soft PVC hose

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 28500/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Supply Ability

100set/month

20 - 63mm Corrugated Pipe Making Machine / Corrugated Pipe Machine / Corrugated Pipe Extrusion Machine

Get Best Price

Customizable HYPET Double Wall Corrugated Pipe Extrusion Line 200-600mm with Engineer Installation Service

Get Best Price

Video

PVC flexible soft tube transparent garden pipe 10-38mm extrusion making machine production line with SJ75/30 Extruder

Get Best Price

Video

10-38mm/0.5-2inch Fiber Braided PVC Pipe Machine Garden Hose Soft PVC Pipe Extrusion Line

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

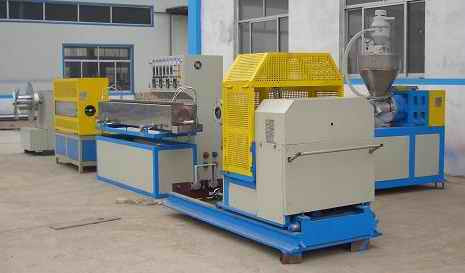

10-50mm PVC steel wire reinforced hose line

A. HYPET Special features

The machine is used to produce PVC steel wire reinforced transparent pipes. The pipe wall is made of transparent PVC plastic In the pipe inner-wall, there are spiral steel wire. The kind of pipe has the advantage of extrusion resistance, corrosion resistance, static electricity high pressure or combustible gas and liquid, heavy suction and delivery of liquid aludge. It is mainly used in fields machinery, sun as chemical industry, building, irrigation and vacuum pumps, etc .

SN	Item	Quantity
1	Hose diameter	10mm-50mm (3/4 - 2 inch)
2	Raw material	Soft PVC granules
3	Output	40-70kg/h
4	Total Installed Power	50kw, 380V/50Hz, 3 phase
5	Overall dimension	7500 x 2500 x 1700 mm
6	Cooling water capacity	1m³/h circularly used

B. Commercial items:

SN	Item	Qty
	PVC steel wire reinforced hose Line 10-50mm including
1	Single screw extruder HYSJ65/30	1
2	Die head	1
3	Spiral steel wire forming unit	1
4	Cooling bath	1
5	Haul off	1
6	Ink shift printer	1
7	Winder	1

Structure of the production line:

Extruder and sprial s steel form unit---- Die head--- Cooling tank--- Haul off---Ink shift printer ---Winder

C. Main specification

1. Single screw extruder HYSJ-65/30

SN	Part name	Item	Description
1	Extruder	Extruder model	HYSJ-65/30 single screw
		Output	80 kg/h for PVC
		Center height	1000mm
		Dimension	2600 x 1200 x 2150mm
		Weight	1700kg
2	Screw	Diameter	Ø65 mm
		Screw ID ratio	30:1
		Screw speed	50 rpm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Core of the screw	Auto control for temperature
3	Barrel	Material	Bimetal barrel
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)
		Heating control area	4 areas
		Heating way	Cast aluminum heater
		Heating power	3.5 kw x 4 sets
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.2kW x 4 sets
4	Gear box	Housing material	Ductile iron QT-500
		Gear material	20CrMnTi
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
5	Driving motor	AC motor power	18.5 kW AC motor
5	Driving motor	AC inverter controller	Delta inverter in heavy type
6	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
		Control option:	RKC and traditional control can be offered
		Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
		Extra temperature zone for die head	designed according to actual heating zone

2. Die head

SN	Parts name	Specification	Description
1	Die head	Size	10-50mm (3/4,1, 1 1/4”, 1 1/2”, 2 inch)
1	Die head	Material	45# steel, Harden steel with chrome-plated surface

3. Spiral steel wire forming unit

SN	Parts name	Specification	Description
1	Spiral steel wire forming unit	Motor	2.2 + 0.75 kw driven by Fuji inverter
		Max. Speed	320 rpm
		Specification	10-50mm (Ø3/4”-Ø2”)

4. Cooling bath

SN	Parts name	Specification	Description
1	Cooling bath	Material	Stainless steel 304
1	Cooling bath	Length	2,000mm

5. Haul off unit

SN	Parts name	Specification	Description
1	Haul off machine	Haul off type	Twin caterpillar type
		Driving speed	0.8-16 m/min
		Motor type	AC motor
		Motor power	1.5 kw, controlled by Fuji inventor

6. Ink shift printer

SN	Parts name	Specification	Description
1	Ink shift printer	Structure	Wheel
1	Ink shift printer	For option	The content printed on hose is according with customer’s requirement.

7. Winder

SN	Parts name	Specification	Description
1	Winder	Tilting table	Manual
1	Winder	Power	1.5 kw
