Name: Easy Operation 16-50mm PVC Single Wall Corrugated Pipe Making Machine With Conic Twin Screw Extruder HYZS51/110
Brand: Shenzhen HYPET Co., Ltd.
SKU: 16-50mm PVC corrugated hose / pipe line
Price: 54500 USD
Availability: InStock

Home > products > Plastic Pipe Extrusion Line >

Easy Operation 16-50mm PVC Single Wall Corrugated Pipe Making Machine With Conic Twin Screw Extruder HYZS51/110

single wall corrugated pipe production line

PVC single wall corrugated pipe making machine

16-50mm PVC corrugated pipe making machine

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

16-50mm PVC corrugated hose / pipe line

Request A Quote

Product Details

Keywords:

16-50mm PVC Corrugated Hose / Pipe Line

Final Product:

PVC Corrugated Hose

Pipe Range:

16-50mm

Extruder Type:

Conic Twin Screw Extruder HYZS51/110

Control System:

PLC With Touch Screen

Processing Material:

PVC Powder

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

single wall corrugated pipe production line

PVC single wall corrugated pipe making machine

16-50mm PVC corrugated pipe making machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 54500/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Supply Ability

100set/month

20 - 63mm Corrugated Pipe Making Machine / Corrugated Pipe Machine / Corrugated Pipe Extrusion Machine

Get Best Price

Customizable HYPET Double Wall Corrugated Pipe Extrusion Line 200-600mm with Engineer Installation Service

Get Best Price

Video

PVC flexible soft tube transparent garden pipe 10-38mm extrusion making machine production line with SJ75/30 Extruder

Get Best Price

Video

10-38mm/0.5-2inch Fiber Braided PVC Pipe Machine Garden Hose Soft PVC Pipe Extrusion Line

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

16-50mm PVC corrugated hose / pipe line

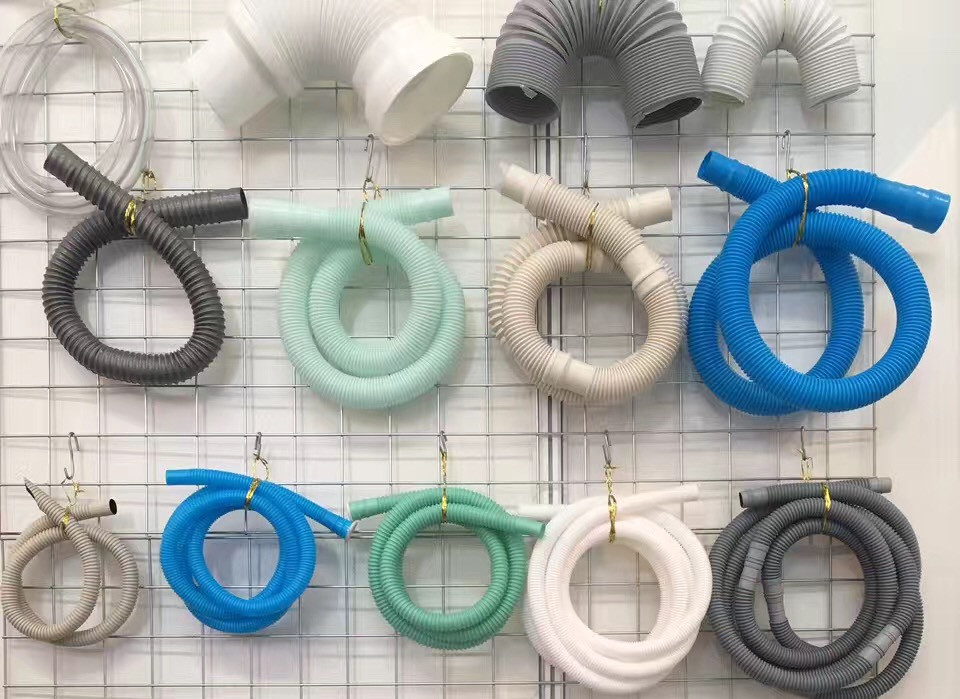

Easy Operation 16-50mm PVC Single Wall Corrugated Pipe Making Machine With Conic Twin Screw Extruder HYZS51/110 0

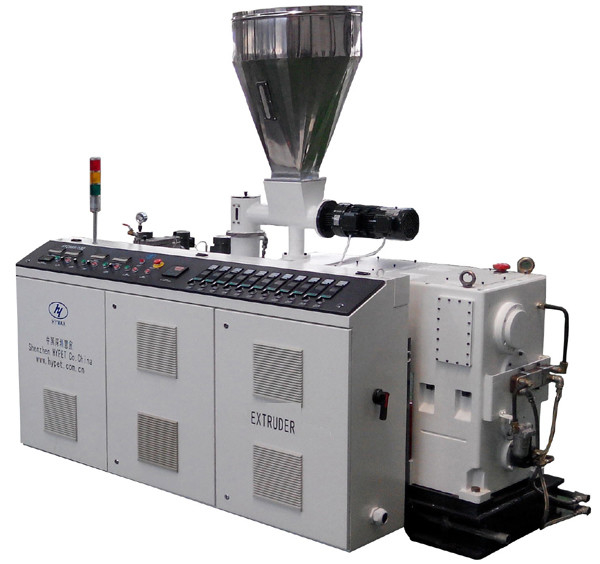

Easy Operation 16-50mm PVC Single Wall Corrugated Pipe Making Machine With Conic Twin Screw Extruder HYZS51/110 1

A. HYPET Special features

1. This line is designed to produce single wall conrrugated pipe which material is PVC, PP, PE and PA etc.

2. Single screw extruder is featured with high efficient compounding, low rate of shear, difficulty to decompose material, high output, good self-cleaning function and long service life.

3. It is more suitable for powder material.

4. The extruder has a vacuum degassing, a screw inside oil cooling, wind cooling or oil cooling of barrels.

5. Hypet special designed screw,special structured screw and special structure mould can protect screw and barrel from easy-abrasion and give an easy forming process.

6. The horizon style forming machine's work table can be adjusted in direction of transverse, vertical and horizontal. Forming blocks are made of special high quality alloy steel, and has many advantages like high strength, good abrasive resistance, low coefficient of thermal expansion.

7. As the wind cooling and water cooling mode, the forming machine is good for fast forming and good cooling effect.

8. This kind of pipe is widely used in protect pipe of car and train,supply and drainage pipe for washer, irrigation of farm and so on.

SN	Item	Quantity
1	Hose diameter	16mm-50mm
2	Raw material	PVC powder
3	Output	70-100kg/h
4	Total Installed Power	60 kw, 380V/50Hz, 3 phase
5	Overall dimension	6300x1200x1900mm
6	Cooling water capacity	60L
7	Compressed air	0.4Mpa- 0.6Mpa, 0.2m³/min

B. Commercial items:

SN	Item	Quantity
	16-50mm PVC corrugated hose line including
1	Conic twin screw extruder HYZS51/110	1
2	Spring loader	1
3	Metal wire rewinder
4	Die head	1
5	Vacuum forming machine	1
6	Coiler	1

C. Main specification

1. 1. Conic twin screw extruder HYZS51/110

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-51/110 conic twin screw
		Output	150-200kg/h for pipe 70-110kg/h for profile or more
		Center height	1000mm
		Dimension	2450 x 1200 x 2400mm
		Weight	2100kg
2	Screw	Diameter	Ø51/110 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~50 r/min
		Core of the screw	Auto control for temperature (Oil cooling will be for option )

3	Barrel	Barrel Structure	In two parts, front part will be with special alloy inserted.
		Big Part of the barrel	38CrMoAlA
		Fron part of the barrel	SKD11 with heat treatment
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)
4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display
5	Heater and cooling fans	Heating control area	4 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	10kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	75w x 3 sets
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	Wih famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	0.75 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	Delta heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	1.5 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	18.5 kW in Siemens brand
9	Driving motor	AC inverter controller	Delta in heavy type

10	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
		Electric components	Branded in Siemens,Schneider,RKC Omron,ABB,FUJI,and small unimportant parts in China famous brand
		Extra temperature zone for die head	6 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy .

2. Spring loader

	Image	Specification	Description
1		Pipe diameter	114mm
2		Output capacity	3 M³/h
3		Hopper volume	200L
4		Motor power	1.5 kw

3. Metal wire rewinder

SN	Image	Specification	Description
1		Material	40Cr
		Function	Unfold the metal wire
		Diameter	Ø200~400mm

4. Die head

Product Image	Specification	Description
	Size	16-50mm with cores&steel wire channel, according to sample or drawing
	Material	High quality mold steel
	Number of die head	1 set
	Number of mold	1 set 20/25mm
	Calibrating mold size	55mmx80mmx65.94mm
	Calibrating mold material	40Cr
	Total length of mold	65.94mm × 60 pair = 3956.4mm

5. Vacuum forming machine

Product Image	Specification	Description
	Pipe range	Φ16~Φ50mm
	Structure	Closed horizontal design
	Running speed	0-25/min
	Main DC motor power	3kW
	Lubrication motor power	0.06kW
	Cooling type	Closed water cooling
	Tempreture of cooling water	5~15℃
	Inverter	ABB
	Contactor and relay	Schneider
	Control system	PLC control program
	Touch screen	Willow
	Operator station display	All parameter settings and controls are operated on the console electrical and touch screen
Mold running rails	Material of rail	38CrMoAlA,nitrated
	Cooling type	Water cooling
Note: Adequate flow of cooling water supply to ensure that the maximum speed of operation, the temperature of the bellows from the forming device is not higher than 55 degrees.

6. Coiler

Product Image	Specification	Description
	Pipe range	Φ16-Φ50mm
	Weight	350kg
	Working speed	0-25m/min
	Main DC motor power	0.75kW
	Contactor and relays	Schneider
	Inverter	ABB
