400mm -1000mm Plastic HDPE PE Pipes Manufacturing Machines Production Line With Big Single Screw Extruder SJ150/38 Motor 400kW And Output 1400kg/h

Brand Name:	Hypet
Model Number:	HYSJ150/38 Single Screw Extruder For HDPE PE PERT Pipe
MOQ:	1set
Price:	USD 468000/set
Delivery Time:	90~120days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Max. Line Speed:

1.2-12m/min

Material Type:

Granules

Inverter:

Delta Heavy Type

Warranty:

1 Year

Extruder Model:

SJ150/38

Pipe Range:

400-1000mm

Application:

PE Pipe

Condition:

New

Cavities:

Single

Screw Material:

38CrMoAl

Main Motor:

400kw

Machine Color:

Customizable

Automatic Grade:

Automatic

Control System:

PLC With Touch Screen

Max Length Of The Full Line:

About 40m

Engineer Installation Service:

Yes

Packaging Details:

Standard Package for sea shipment

Supply Ability:

20set/year

Highlight:

400mm -1000mm PE Pipe Manufacturing Machine

Plastic HDPE PE Pipes Manufacturing Machines

400kW PE Pipe Manufacturing Machine

Product Description

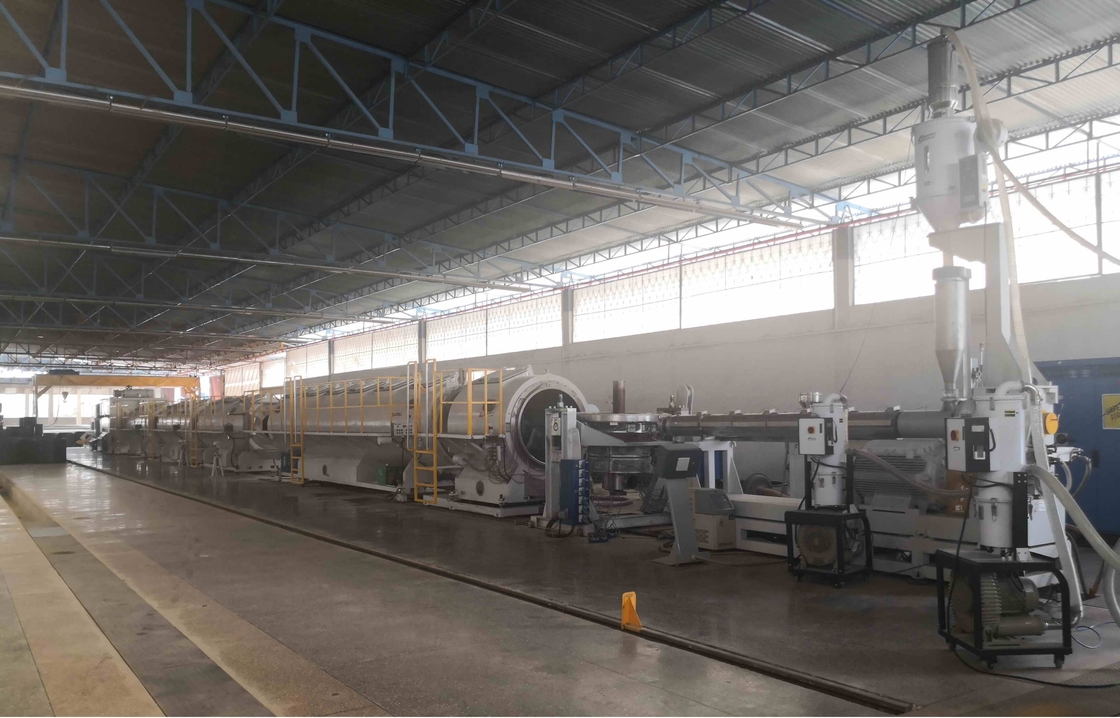

400-1000mm PE Pipe Production Line With SJ150/38 Extruder 400 KW in output of 1400kg/h

400mm -1000mm Plastic HDPE PE Pipes Manufacturing Machines Production Line With Big Single Screw Extruder SJ150/38 Motor 400kW And Output 1400kg/h 0

A .Feature of HYPET 400-1000mm PE Pipe Extrusion Line

HYPET unique advantages Except the same features with other supplier

SN	Items	Speciality
1	High output	Ensure you the highest output as compared with others
2	New technology gear box	High torque gear box
3	Screw and barrel	Bi-metal material ensure you longer working life, ensuring 24months
4	Electric elements and box	In detachable, with world famous brand such as ABB, Siemens, Schneider, Delta, well organized.
5	HYPET PLC control system	With operation easy, management full, energy saving and counting, and intelligent control system
6	Pipe brighten device	To make the pipe shining and smoothing
7	Vacuum tank 304 stainless	Water level and temperature controlled automatically
8	Planetary chipless cutter	In new device for cutting pipe to save the material

B, Commercial items:

SN	Main Items	Qty
400-1000mm PE pipe line with SJ150/38 extruder
1	HYSJ150/38 single screw extruder 400kw motor power	1 set
2	Gravimetric system for weight per meter made in China	1 set
3	HD3000 vertical hot dryer	1 set
4	Vacuum auto loader AL700	2 sets
5	HYSJ35/25 single screw extruder for color strip	1 set
6	Die head : 400/450/500/560/630/710/800/900/1000 mm in PN 8-10-16-20	1 set
7	Vacuum tank in 3,000 mm	1 set
8	Vacuum tank in 9,000 mm	1 set
9	Vacuum tank sealing device for 400/450/500/560/630/710/800/900/1000 mm	1 set
10	Clamping device for PE pipe	1 set
11	Cooling tank in 9,000 mm	3 sets
12	Cooling tank sealing device for 400/450/500/560/630/710/800/900/1000 mm	3 sets
13	Haul off unit 10 claws type	1 set
14	Planetary cutter	1 set
15	Stacker	1 set

Remarks:

1. Condition of the price and destination Ex-works Wuhan China

2. Payment method: 30% of the total will be paid by T/T as deposit, the balance will be paid after testing and before shipping by T/T or by irrevocable L/C at sight .

3. Delivery period: 60 days after received the deposit.

4. Validity period: 30 days after ensured.

5. Warranty: one year after commissioning in the customer shop.

6. Training: both in china and in the customer shop are available .

C, Specification of the Machine

400mm -1000mm Plastic HDPE PE Pipes Manufacturing Machines Production Line With Big Single Screw Extruder SJ150/38 Motor 400kW And Output 1400kg/h 4

Part	Item		Description
Extruder	Extruder model	HYSJ-150/38 single screw
	Output	1500 kg/h for PE
	Center height	1300mm
	Dimension	6950 x 1650 x 2650mm
	Weight	8000 kg
Screw	Diameter	Ø150 mm
	Screw ID ratio	38:1
	Screw speed	94 rpm
	Material	38CrMoAlA + special alloy
	Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
	Core of the screw	Auto control for temperature
Barrel	Material	Bimetal barrel
	Inside finish	Nitrogen-filled (0.50~0.70mm depth)
	Heating control area	10 areas
	Heating way	Cast aluminum heater
	Heating power	10 kw x 8 sets
	Cooling system	Low-noisy barrel cooling fan
	Cooling power	0.75 kw x 8 sets
Gear box	Housing material	Ductile iron QT-500
	Gear material	20CrMnTi
	Gear surface	Hardened and ground in high precision
	Axis material	40Cr
Driving motor	AC motor power	400 kw AC motor
	AC inverter controller	Delta inverter in heavy type
Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
	Control option:	RKC and traditional control can be offered
	Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
	Extra temperature zone for die head	designed according to actual heating zone

2. Vertical Hot dryer

Specification	Description
Model number	HY-HD3000
Power	3000 kg
Heater	7.5 HP
revolution	3W
demension	380V 3P 50HZ
Weight	1300 kgs

3.Vacuum auto loader

Specifications	Parameter
Model	AL700
Working form	Inductive type
Power	1.5kw, 3P
Capacity	550kg
volume	10L
Feeding hose diameter	Ф38mm
Feeding time	10-15 seconds
Body Dimension	410×400×710mm
Hopper dimension	420×290×500mm
Weight	80 kgs

4.HY35/25 single screw extruder for color strip

Specification	Description
Barrel	38CrMoAIA,nitrification
Screw	38CrMoAIA,nitrification
Output	17kg/h
Dia. of screw	Ø35mm
Screw L/D	25:1
The drive power	4 kW
The motor control	AC inverter, Delta

5. die head: G1000 in 4 pressure grade

Specification	Description
Design method	According to tech from Germany
Sizes for pipe	400/450/500/560/630/710/800/900/1000 mm in PN 8-10-16-20
Material of die head	40CrMo
Material of calibrating sleeves	Copper or stainless steel for option.
Flow channel	Chrome plated
Pipe Bright function	With HYPET brighter
Heater	Mica stainless steel heaters

6.Vacuum tank in 3,000 mm

Specification	Description
Material	Stainless steel 304
Length	3,000mm
Center height	1200 mm
Dia. range	Ø400~Ø1000mm
vacuum pump	2 x 7.5kw
vacuum degree adjustable	0~-0.06MPa
water pump	2 x 11 kw
cooling method	spray cooling
spraying points	150 points
spray type	G1〞×Φ3
filters	G1.5”
out pipe sizes	G2”
Moving motor power	1.1 kw
range of forward or backward direction	±800mm
range of up and down direction	±80 mm
range of left or right direction	±60 mm

7.Vacuum tank in 9,000 mm 1set

Specification	Description
Material	Stainless steel 304
Length	9,000mm
Center height	1200 mm
Dia. range	Ø400~Ø1000mm
vacuum pump	4 x 5.5kw
vacuum degree adjustable	0~-0.06MPa
water pump	4 x 11 kw
cooling method	spray cooling
spraying points	350 points
spray type	G1〞×Φ3
filters	G1.5”
out pipe sizes	G2”
Moving motor power	1.1 kw
range of forward or backward direction	±800mm
range of up and down direction	±80 mm
range of left or right direction	±60 mm

8. Cooling tank in 9,000 mm 1set

400mm -1000mm Plastic HDPE PE Pipes Manufacturing Machines Production Line With Big Single Screw Extruder SJ150/38 Motor 400kW And Output 1400kg/h 12

Specification	Description
Pipe range	Ø400-1000mm
Length of vacuum box	9,000mm
Construction	Spraying method
Water pump power	7.5 kw x 2 sets
No.of nozzle	320 pcs
No.of filter	2 sets
No. of bypass	2 sets
Water level control way	Float valve
Cover material	Aluminum alloy plate
Material	Stainless steel 304
Water temperature control	Automatic regulating valve
Input pipe	G1.5”
Output pipe	G2”

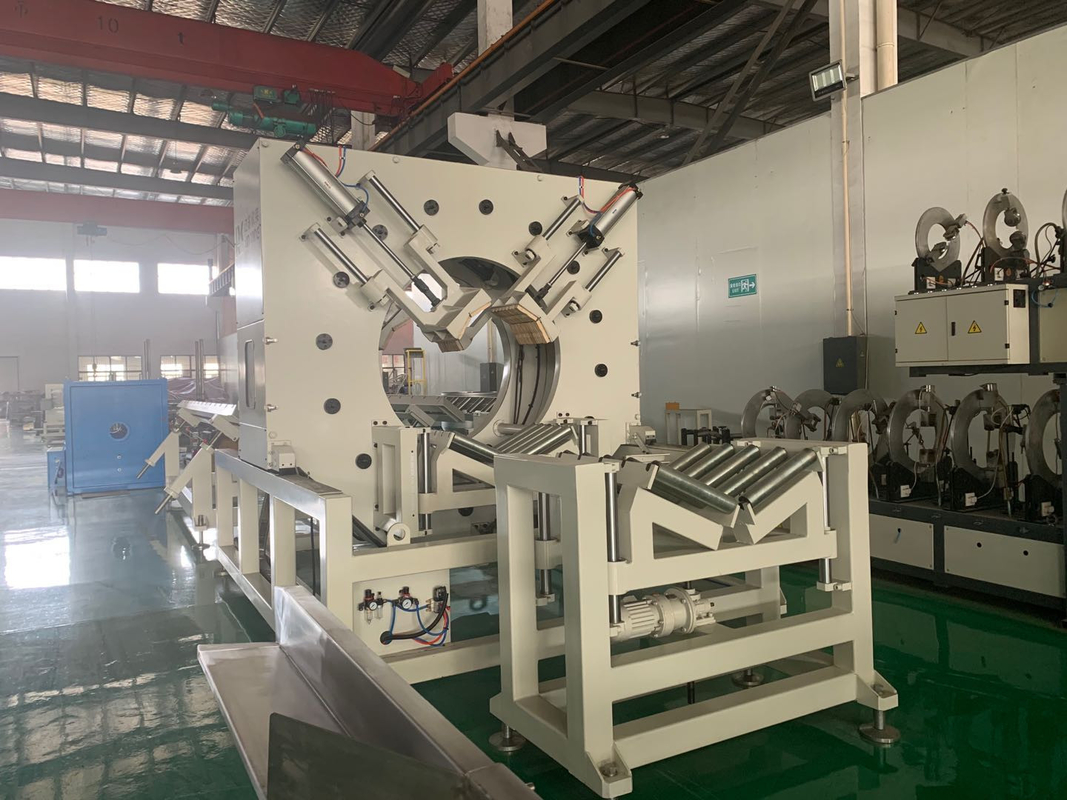

9.Haul off unit 1set

Specification	Description
Haul off type	10 caterpillars
Center height	1200 mm
For Pipe size	Ø400~Ø1000mm
Driving method	Driven by rubber blocks
Driving speed	0.1-1m/min
Appearance sizes	4000×2200×2500mm
Motor type	Servo motor
Motor power	0.55kW x 10 sets
Control system	PLC
Contacted caterpillar length	3,000mm
Max. driving power	90,000 N
Max press force	5,000 N
Clamping type	4 mechanical and 6 pneumatic clamping
Gear box	Motor with strong helical gear box
Width of caterpillar	60 mm
Caterpillar control	4 cylinders
Metering system	Code installed
Adjusting mode	Pneumatic
Press pressure on the pipe	Adjusted by pneumatic valves
Down caterpillar position	Adjusted by motor lift
Air pressure	0.4-0.6Mpa
Max opening distance	15000mm

10.Planetary cutter 1set

400mm -1000mm Plastic HDPE PE Pipes Manufacturing Machines Production Line With Big Single Screw Extruder SJ150/38 Motor 400kW And Output 1400kg/h 14

Specification	Description
Cutting type	planetary cutting ( Auto/Manual)
Cutter material	Saw blade with carbide cutter head
Cutting precision	≤ 3mm
Control system	PLC automatic control system
Cutting range	Ø400～Ø1000mm
Movable stroke distance	1800mm
Max. cutting thickness	60 mm
Center height	1200mm
Feeding device	Hydraulic system
Hydraulic pump power	0.75kw
Cutting motor power	7.5 kw
Rotation motor	2.2kw
Pneumatic parts	imported from Taiwan ( or Germany)

11. Stacker 1set

Specification	Description
Tilting table	Pneumatically operated
Nominal length	6 mtrs
Material of tripping chute	MS rigid structural steel
Control method	PLC control
