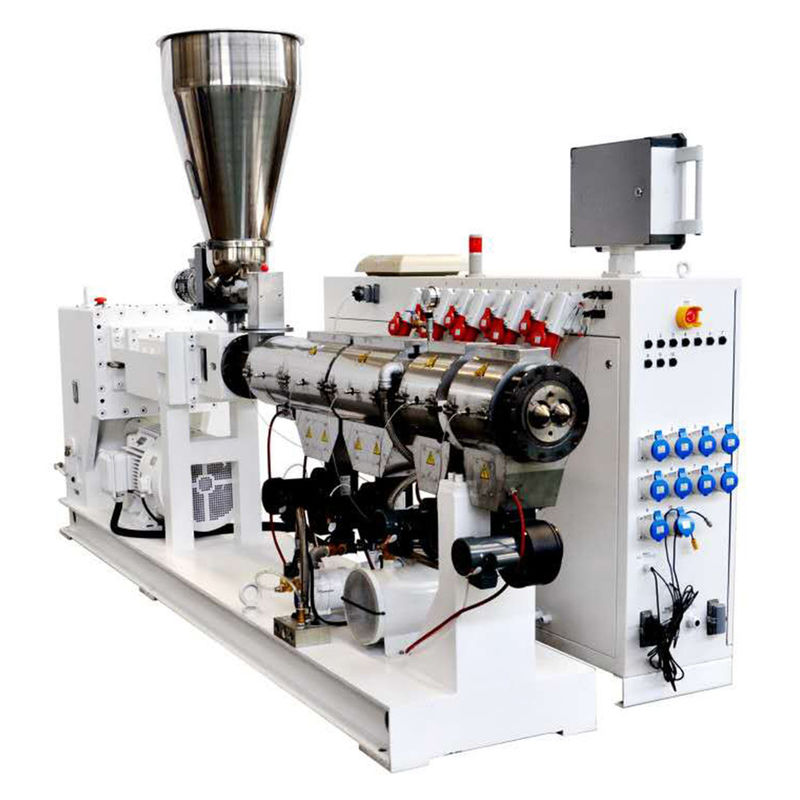

Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28

Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28
Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28
Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28 Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28

Large Image :  Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28

Product Details:
Place of Origin: China
Brand Name: SHENZHEN HYPET
Certification: CE, ISO9001
Model Number: HYPS120/28
Payment & Shipping Terms:
Minimum Order Quantity: Plastic Sheet Extruder 1 set
Price: USD57800/set - USD64800/set
Packaging Details: Plastic Sheet Extruder LCL woden case, FCL with film and rope fixing
Delivery Time: Plastic Sheet Extruder10 - 30 work days
Payment Terms: L/C, T/T
Supply Ability: Plastic Sheet Extruder 250sets/year
Contact Now

Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28

Description
Key Words: Plastic Sheet Extruder HYPS120/28 Control System: PLC
Inverter: ABB Brand Motor: Siemens Biede
Output: 800kg/h-850kg/h Main Motor: 110kw
High Light:

800mm Pvc Pipe Extrusion Machine

,

Dia120mm Twin Screw Compounder

,

Dia120mm Screw Pvc Pipe Extrusion Machine

Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28



Plastic Sheet Extruder HYPET advantages of parallel twin screw extruder

  • Barrel and screw Nitro Alloy with bi-metal type for longer working life.
  • Screw has internal closed loop heat balancing system by means of distilled water
  • The harden and ground gear box is made with German technology.
  • Twin output shaft Helical Gear Box. Gears are hardened and ground. Both output shafts are integral with high capacity thrust bearings to absorb axial thrust generated during the extrusion process
  • Gear box housing is made of high quality Ductile iron QT-500.
  • Lubricating pump with Heat Exchanger, oil filter and oil flow indicator are provided for force lubrication of Thrust Gear box. The gears and bearings are forced lubricated. Gear box lube oil is circulated in a closed loop through heat exchanger to maintain optimum oil temperature in gearbox.
  • Vacuum degassing system along with dust collector having bypass system & Vacuum pump.
  • Extruder mounted on rigid structural steel frame.
  • Quantitative feeding system with twin screw structure to avoid stagnant material.
  • Plug & Socket for Die head heating zones, Connecting head & Melt temperature indicator.
  • Display Of Heating current for each temperature zone, manual override on all zones in case of sensor failure.
  • Drive control panel, equipped with panel water cooler, placed besides heating control panel with Independent Isolator for essential power supply.
  • Other eclectic and pneumatic components are made in world famous brand such as from Japan, Siemens from Germany etc.



Plastic Sheet Extruder / Pvc Twin Screw Machine Screw Condition of use

SN Condition Specification Plastic Sheet Extruder Description
1

Natural

circumstance

condition

 Working place Indoor use
Power source No dangerous area
Humidity 55-85% no condensation
Temperature 0~40 ℃
2

Electricity

source

 Installation capacity 200kW
Power supply 3P+N+PE
Voltage/Frequency 380V/50Hz other can be option
3 Cooling water Temperature ≤18 ℃
Water pressure ≥0.3MPa
Flow ~5 m3/h
4 Air condition Compressor air pressure ≥0.6MPa
Flow ~0.9 m3/min



Plastic Sheet Extruder / Pvc Twin Screw Machine Screw Main specification:



SN Parts name Specification Plastic Sheet Extruder Description
1 Extruder Extruder model HYPS-107/28 Parallel twin screw
Output 800~850kg/h
Center height 1,100mm
Weight 6,200kg
2 Screw Diameter Ø120mm
Material 38CrMoAlA + special alloy
Finish Nitrogen-filled (0.50~0.70mm depth) and polish
Rotate speed 45 r/min
Core of the screw Auto control for temperature
3 Barrel Material 38CrMoAlA with bi-metal type
Inside finish Nitrogen-filled (0.50~0.70mm depth) and rubbing
Heating control area 7 areas
Heating way Copper cooling fins with ceramic heater
Heating power 67 kW
Cooling system Low-noisy barrel cooling fan
Cooling power 0.75 kW x 7 sets
4 Gear box Housing material Ductile iron QT-500
Gear material 20CrMnTi
Gear surface Hardened and ground in high precision
Axis material 40Cr
5

Dosing

feeder

 Supplying material motor 3 kW
Speed range 1-50 RPM
Inverter ABB
6 Vacuum degas with selector Vacuum degree -0.004Mpa
Motor power 3kW
7 Driving motor AC motor power 110 kW
AC inverter controller ABB
8 Electrical Control system Detachable control panel PLC control system
Extra temperature zone for die head 16 zones
Components brand Siemens, RKC, ABB, etc.
Note: digital control system can be optional.



Plastic Sheet Extruder / Pvc Twin Screw Machine Screw Picture

Plastic Sheet Extruder / Pvc Twin Screw Machine Screw 120/28 0
