PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder

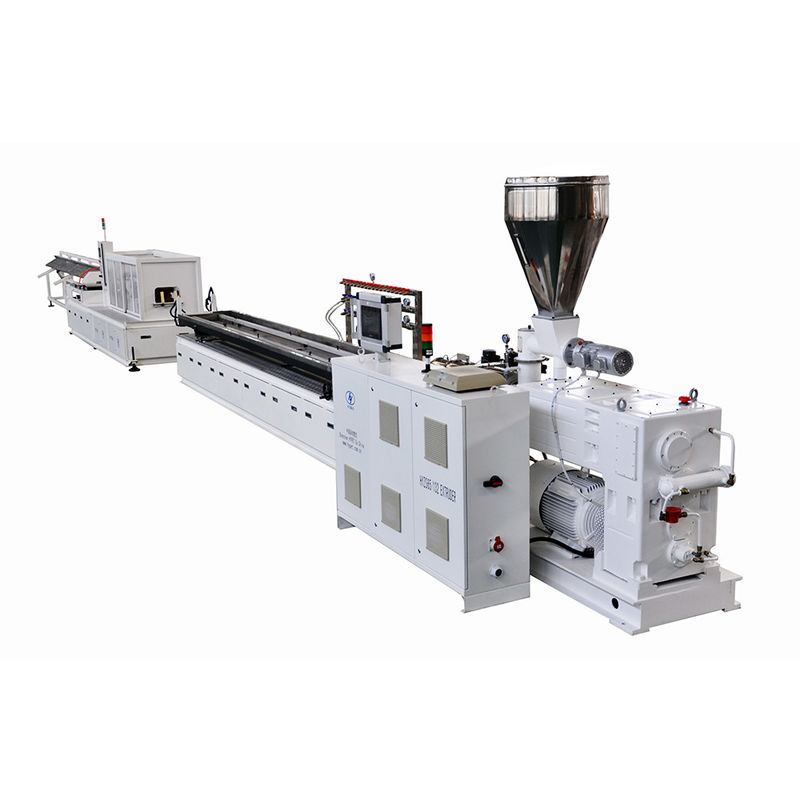

PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Production line composition

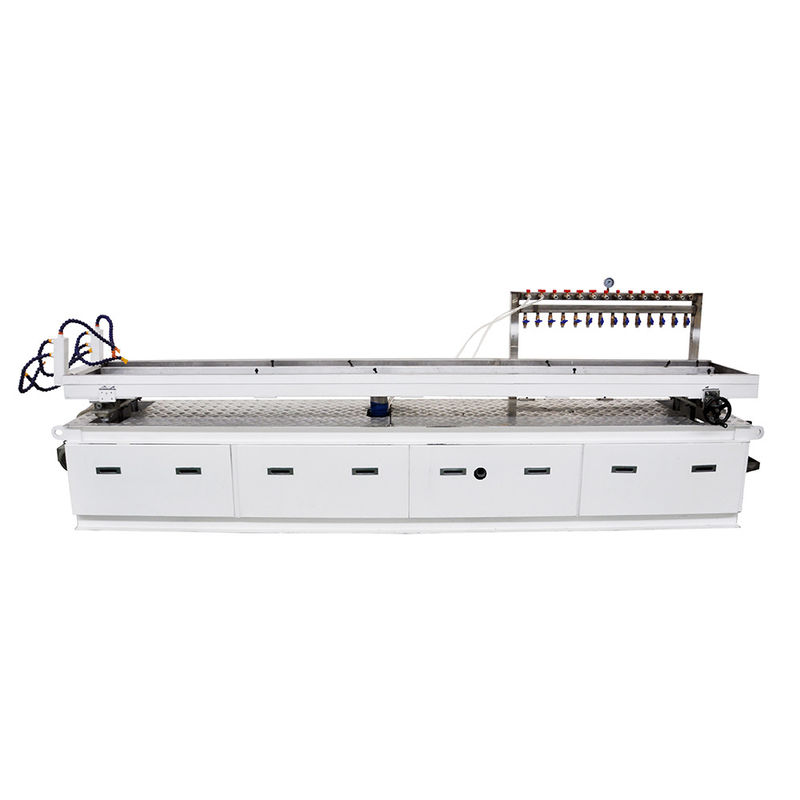

- Auto loader - Conic twin screw extruder - Profile mold - Calibrating table - Haul off unit - Cutter - Stacker.
PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Auxiliary machines for optional
- Mixer;
- Crusher;
- Pulverizer;
- Chiller;
- Air compressor.
PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder HYPET Unique Advantages
- Special bimetallic high-calcium barrel screw, which can extend the life, and the shelf life can be up to one year (usually 3 months)
- It can be equipped with different shapes of molds, and can provide a cost-effective formula
- Surface treatment processes such as hot stamping, laminating, and transfer printing can be selected.
- Siemens PLC control system, equipped with world-famous brand appliances such as ABB, Siemens, Schneider, etc.
PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Configuration list
Note: This table as attached file which is for selection of the configuration on the whole line
| SN |
Items |
Choosing configuration |
Other option |
| 1 |
Production control system |
PLC control system, Siemens |
Digital is for option |
| 2 |
Cooling system of the main control electric cabinet |
Air conditioner cooling cabinet |
Fan cooling for option |
| 3 |
Main motor |
AC motor with famous inverter |
DC is for option |
| 4 |
Pressure sensor |
HYPET individual temperature and pressure control in two parts |
Dynisco is for option |
| 5 |
Core thermoregulation control |
Internal closed loop heat balancing system. |
External heat control option |
| 6 |
Material of screw & barrel type |
Nitro Alloy with bi-metal in two parts |
Standard Nitro with Alloy plating option |
| 7 |
Quantitative feeding system’s mixing function |
Twin screw with mixing device option |
Dosing device in single screw type. |
| 8 |
Cutter |
Dustless with blade type in new technology |
Upstroke Saw Cutter. Old type |
PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Condition of use
1. PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Technical features of whole line
| SN |
Specification |
Description |
Remark |
| 1 |
Suitable material |
PVC mixed powder |
|
| 2 |
Max product size |
300mm |
|
| 3 |
Production speed |
6 m/min |
|
| 4 |
Max. output |
150-240kg/h |
The output will have a corresponding change depending on the material being processed, product specifications, and operating conditions |
| 5 |
Test and accept |
Based on HYPET standard formula. |
|
| 6 |
Center height |
1,000mm |
|
| 7 |
Whole line size (L x W x H) |
24,000 x 1,800 x 2,200mm |
|
| 8 |
Operation direction |
From right to left |
|
| 9 |
Color of equipment |
HYPET white color |
|
| 10 |
Control of whole production |
Refer to the “configuration list”. |
|
| Note |
Extrusion capacity will be changed according the processing material and working conditions |
PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder
PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Terms & conditions
1. PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Training and services
1) Instruction of field installation.
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
4) Provide technical consultation service on long-term basis.
2. PVC Ceiling Profile Extrusion Machine With Twin Screw Extruder Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
