PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder

PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder

Brand Name:	Hypet
Model Number:	ZS65/132 PVC Cable Duct Extrusion Line
MOQ:	1set
Price:	USD 33200/set
Delivery Time:	Plastic Cable Duct Extrusion Line 65working days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, CE

Screw Diameter:

65/132mm

Application:

PVC Cable Duct Profile

Production Capacity:

280-320kg/h For Profile

Warranty:

1 Year

Heating Method:

Electric Heating

Voltage:

380V 50HZ 3Phase(Customized)

Motor/Inverter:

Siemens/ABB/China Top Brand

Screw Design:

Conical Twin Screw

Main Motor Power:

37kw

Station/ Cavity:

Single /One

Extrusion Mould:

One For One

Profile Range:

50*40 To 150*100mm

Control System:

PLC With Touch Screen

Max Length Of The Full Line:

About 20m

Engineer Installation Service:

Yes

Packaging Details:

Standard Package for sea shipment

Supply Ability:

Plastic Cable Duct Extrusion Line 100set per year

Highlight:

PVC Cable Duct Trunk Production Line

Twin Screw Extruder With Gear Box

PVC Profile Twin Screw Extruder

Product Description

PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder 0

PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder 1

PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder 2

PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder 3

PVC Cable Duct Trunk Production Line With Vertical Gear Box PVC Profile Twin Screw Extruder 4

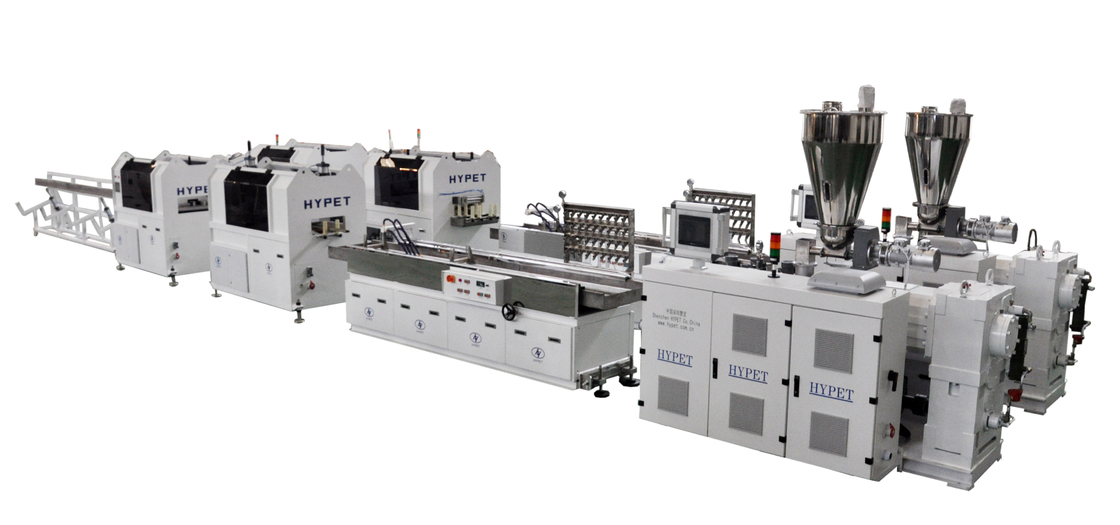

Production Line Brief introduction:

Features	High output	180-320kg/h for different type
	High efficient	Stable quality, efficient operation make high qualified
	Energy saving	It can save energy 20-30% by machine and software.
	Intelligent AI control	PLC + HYPET software to control the operation automatically and save each formulation case.
Machine information	Popular types for using	Single head , double head, and four head type
	Product shape and size	Can be done as the customer required.
	Caco3 amount	From 30phr to 100 phr when PVC 100 phr.
	Mould material	4Cr13 with heat treatment HB280-310
	Calibrating mould legnth	200mm
	Water Cooling tank length	1200mm shear with each other
Working condition	Electric power	3-phase, 380v +/- 10% , 50Hz (others for option
	Total power	Depends different lines
	Cooling water	≤ 20°C ≥ 0.3Mpa
	Compressed water	＞ 0.3m3/min, ＞ 0.5Mpa
	Overall sizes ( LWH)	22000* 1600*2500 mm

HYZS65/132 conic twin screw extruder with HYYF240 cable duct down stream line:

SN	Parts name	Qty

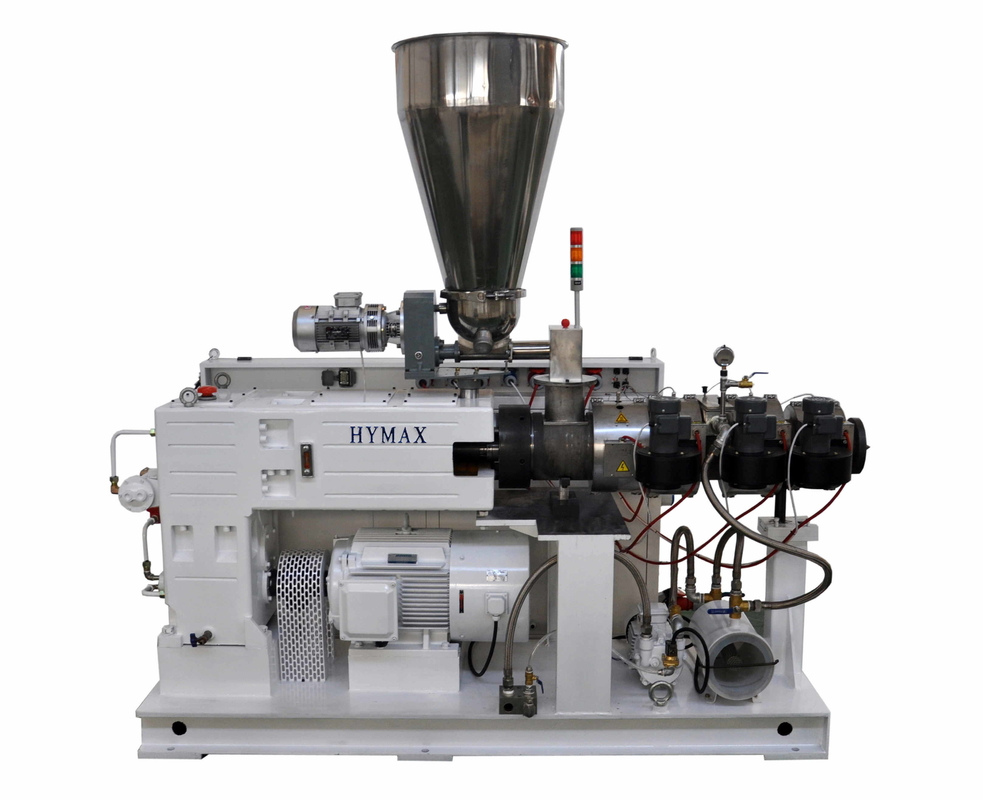

1	HYZS65/132 conic twin screw extruder with 37kw motor	1
2	Calibrating table in 4 m Vacuum pump 5.5kw1 Water pump 1.5kw1	1
3	Haul off unit two claws type, 1.5kw*2 sets	1
4	Cutter in 2.2kw cutter sizes Max 240*70mm	1
5	Stacker	1
6	Punching device possible for option

Cable duct mould list:

SN	Mould Name	Qty
	Mould in single head material 4Cr13 stainless steel
1	40*30 in single head ( one bottom+ one cover )	1
2	50*25 in single head ( one bottom+ one cover )	1
3	60*40 in single head ( one bottom+ one cover )	1
4	60*60 in single head ( one bottom+ one cover )	1
5	80*60 in single head ( one bottom+ one cover )	1
6	100*40 in single head ( one bottom+ one cover )	1
7	100*60 in single head ( one bottom+ one cover )	1
8	100*100 in single head ( one bottom+ one cover )	1
9	120*80 in single head ( one bottom+ one cover )	1
10	150*50 in single head ( one bottom+ one cover )	1
11	150*100 in single head ( one bottom+ one cover )	1
12	200*100 in single head ( one bottom+ one cover ) special sizes	1
13	200*150 in single head ( one bottom+ one cover ) special sizes	1

Technical specification:

SN	Items	Description

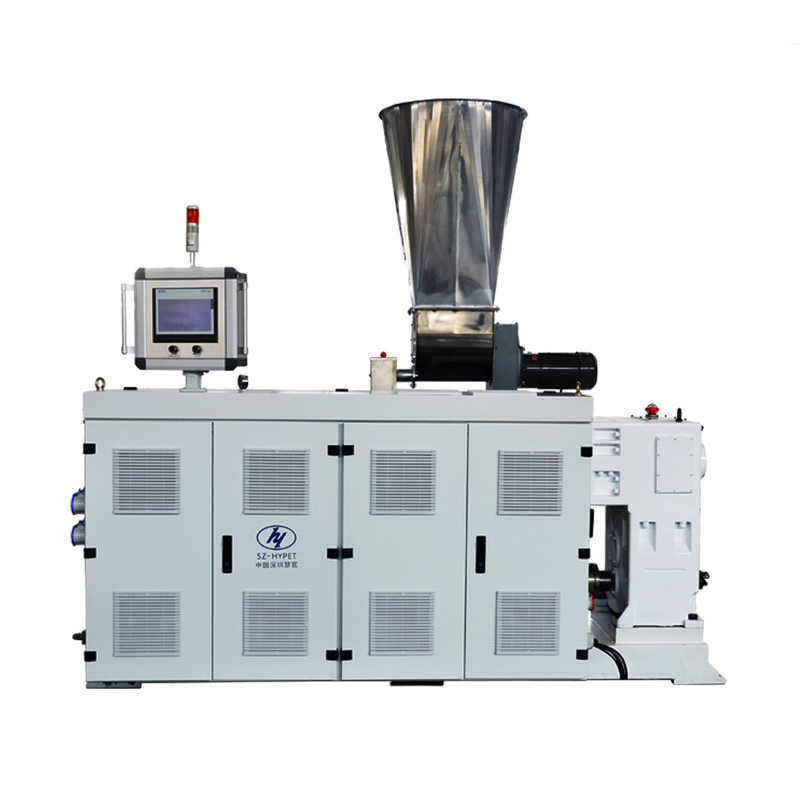

HYZS65/132 conic twin screw extruder
1	Extruder model	HYZS-65/132 conic twin screw
2	Output	280-320 for profile
3	Screw diameter	Ø65/132 mm
4	Screw material	38CrMoAlA + special alloy
5	Heat treatment	Nitrogen-filled (0.50~0.70mm depth)
6	Core of the screw	Auto control for temperature (Oil cooling will be for option )
7	Rotate speed	0~38 r/min
8	Barrel Structure	Bimetallic In two parts, front part will be with special alloy inserted.
9	Front part of the barrel	SKD11 with heat treatment
10	Inside finish	Nitrogen-filled (0.50~0.70mm depth)
11	Heating control area	4 zones
12	Heating way	Cast aluminum/ ceramics
13	Heating power	22 kW
14	Cooling system	Low-noisy barrel cooling fan
15	Cooling power	0.2kwx2 sets +0.3kW x 1 set
16	Temp & pressure Transducer	China famous brand with isolated cable.
17	Gear box brand	HYMAX gear box made by HYPET
18	Housing material	Ductile iron
19	Gear material	20CrMnTiA
20	Gear surface	Hardened and ground in high precision
21	Axis material	40Cr
22	Temperature of oil	Controlled by two system
23	Rubber sealer	Imported special rubber sealer used
24	Bearings	With famous and reliable brand.
25	Dosing feeder	Twin screw feeding type
26	Motor power	1.1kw
27	Speed range	1-50 RPM
28	Powder bridge	Anti powder bridge with high Caco3
29	Control	heavy loader type inverter
30	Vacuum degas motor power	2.2 kw
31	Vacuum degree	-0.04Mpa
32	Vacuum tank	Easy to be clean
33	Driving motor	AC Motor heavy type famous brand
34	Motor power	37kw
35	AC inverter controller	Famous Delta in heavy type
36	Electrical Control system	Siemens PLC+ HYPET AI auto control system
37	Electric components	Branded in Siemens, Schneider Omron, Delta /ABB, FUJI, and small unimportant parts in China famous brand
38	Extra temperature zone for die	8 zones
39	display screen size	14” big size monitor
40	Electric cabinet cable	Easy to be disassemble by joints

41	Extra power adaptor	For down stream, and other machine
Cable duct down stream machines

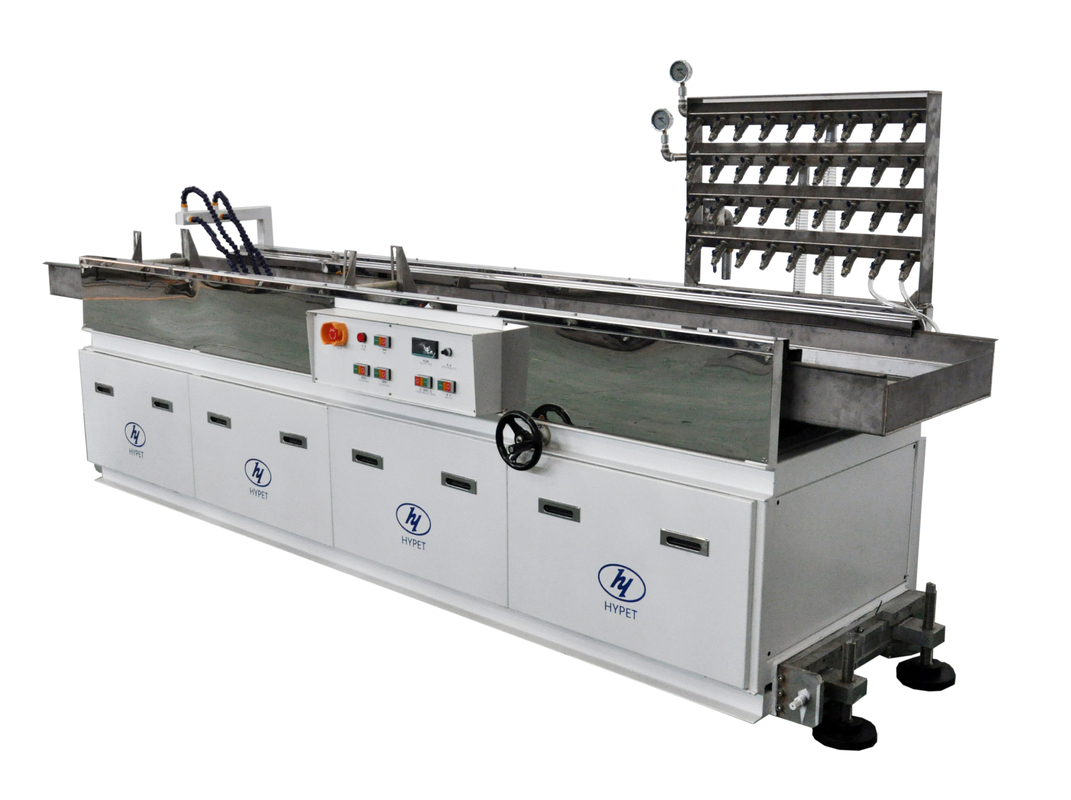

Calibrating table
1	Material	Stainless steel S304 for watering material
2	Length	4,000mm
3	Center height	1,000 mm
4	Max. product width	240mm
5	Mold assembling size	320mm
6	Vacuum pump	5.5 kW x 1 set
7	Water pump	1.5 kW x 1 set
8	Hot dryer pump	1.5kW*2
9	Vacuum joints	20 pcs
10	Water pipe joints	20 pcs
11	Center height	1,000mm +/- 50mm adjustable
12	Water gas separator	For multi pumps (3)
13	Vacuum connection	Ø50mm *2
14	Water connection	Ø50mm *2
15	Movable motor power	0.75 kW
16	Moving range of front & rear	800 mm
17	Vertical moving range	850~960mm
18	Tilt adjustment	1-25mm by manual
19	Cross adjustment	1-50mm
20	Left and right adjustment	1-120 mm
Haul off
1	Haul off type	Up-down 2 claw type
2	Max. Product size	240mm width x 70mm thickness
3	Rubber block width	240mm
4	Haul off force	30,000 N
5	Max. speed	0.5~7m/min
6	Haul off shape	Can suitable for different product shape
7	Effective Length of caterpillar	2,000mm
8	Motor	AC motor, with famous inverter
9	Power	1.5 kW x 2 sets
10	Clamp and adjustment type	2 individual cylinder
11	Center height	1,000mm

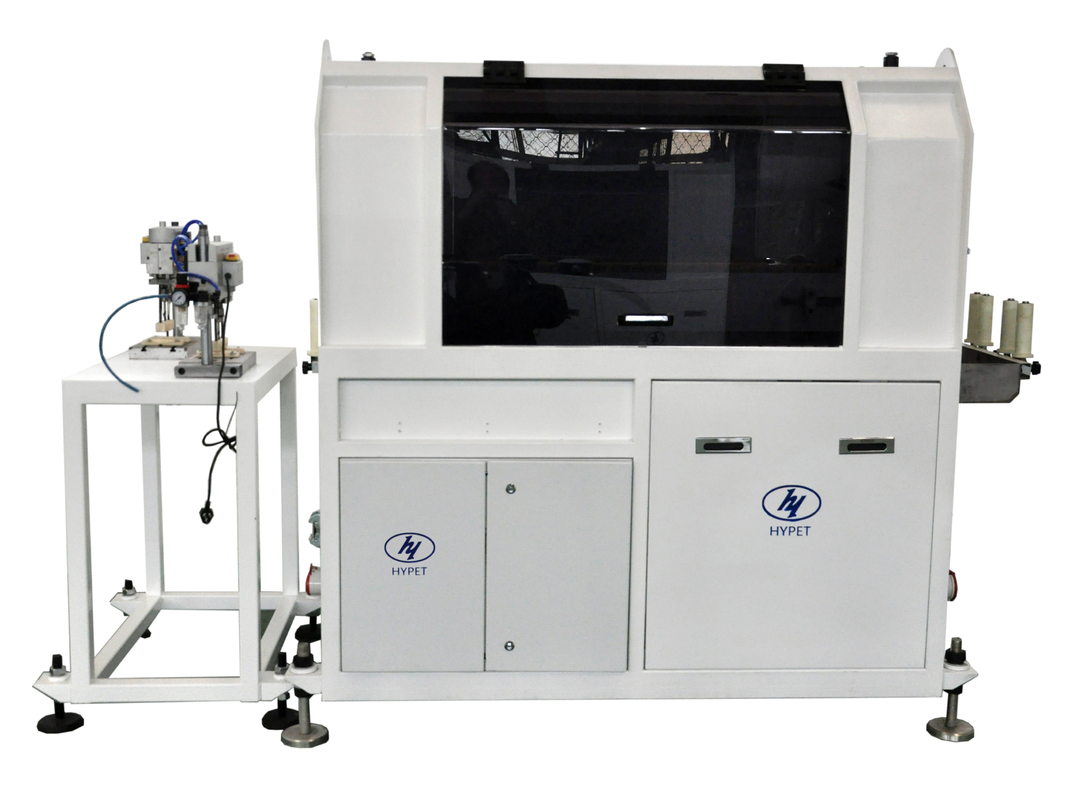

Cutter
1	Cutting type	Saw cutter
2	Max. Cutting size	240mm width x 100mm thickness
3	Cutting movement	Transverse movement
4	Follow up by	Clamping duct in runing
5	Cutting Motor power	2.2 kW
6	Dust-absorb device	2.2 kW x 1 set
7	Air pressure	0.5~0.7Mpa
8	Moving method	Pneumatic
9	Control method	PLC control
Stacker
1	Tilting table	Pneumatically operated
2	Nominal length	4~6m
3	Material of tripping chute	MS rigid structural steel
4	Control method	PLC control
