Name: Soft Transparent Garden Tube Hose PVC Pipe Extrusion Machine SJ75/28 Production Line
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYSJ75/28 soft PVC garden hose extrusion line
Price: 19900 USD
Availability: InStock

Home > products > Plastic Pipe Extrusion Line >

Soft Transparent Garden Tube Hose PVC Pipe Extrusion Machine SJ75/28 Production Line

Garden Tube PVC Pipe Extrusion Machine

Soft Transparent PVC Pipe Extrusion Machine

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYSJ75/28 soft PVC garden hose extrusion line

Request A Quote

Product Details

Main Motor:

22kw

Product Type:

Soft PVC Garden Hose Extrusion Machine

Product Heating System:

Electric Heating

Screw Diameter:

SJ75/28mm

Pipe Range:

10-38mm / 0.5-2inch

Pipe Layers:

One Layer From PVC Pellets

Motor:

SIEMENS

Voltage:

380V 50HZ 3Phase(Customized)

Control System:

PLC With Touch Screen

Output:

40-70kg/h

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

Garden Tube PVC Pipe Extrusion Machine

Soft Transparent PVC Pipe Extrusion Machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 19900/set

Packaging Details

Standard Package for sea shipment

Delivery Time

soft PVC garden hose Extrusion Line 65working days

Payment Terms

L/C, T/T

Supply Ability

soft PVC garden hose Extrusion Line 100set per year

20 - 63mm Corrugated Pipe Making Machine / Corrugated Pipe Machine / Corrugated Pipe Extrusion Machine

Get Best Price

Customizable HYPET Double Wall Corrugated Pipe Extrusion Line 200-600mm with Engineer Installation Service

Get Best Price

Video

PVC flexible soft tube transparent garden pipe 10-38mm extrusion making machine production line with SJ75/30 Extruder

Get Best Price

Video

10-38mm/0.5-2inch Fiber Braided PVC Pipe Machine Garden Hose Soft PVC Pipe Extrusion Line

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

Soft Transparent Garden Tube Hose PVC Pipe Extrusion Machine SJ75/28 Production Line 0

Soft Transparent Garden Tube Hose PVC Pipe Extrusion Machine SJ75/28 Production Line 1

Soft Transparent Garden Tube Hose PVC Pipe Extrusion Machine SJ75/28 Production Line 2

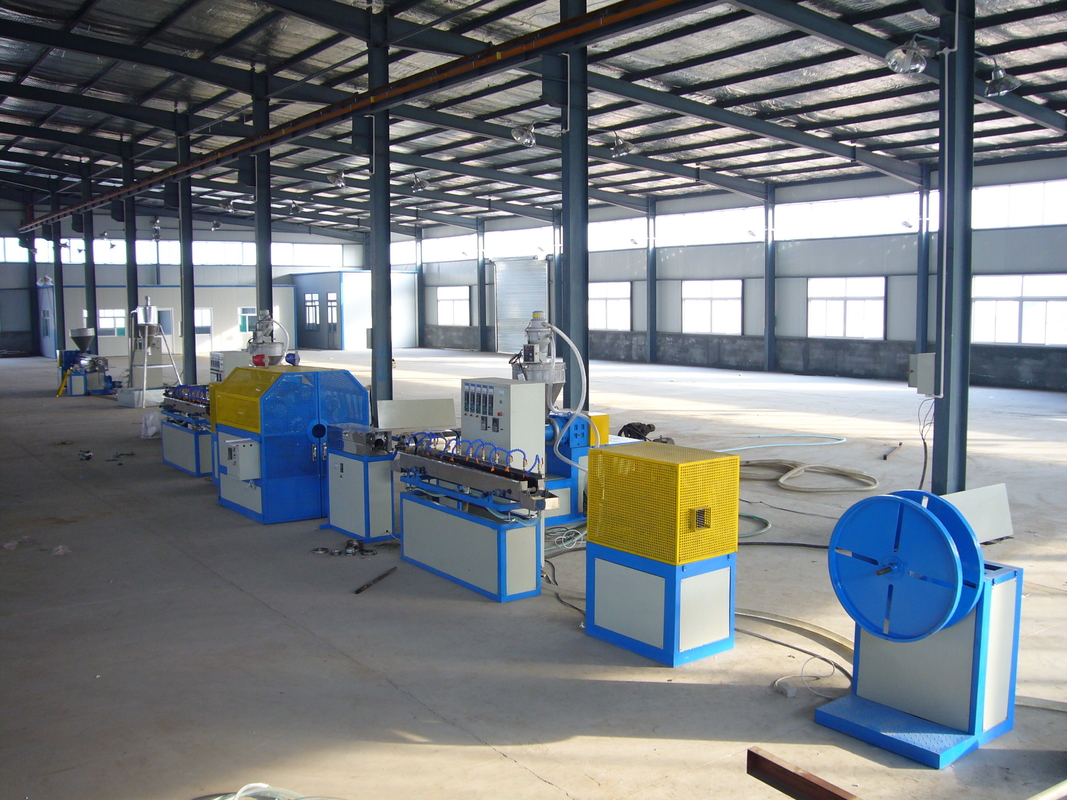

PVC fiber reinforced hose production line brief introduction:

Model	PVC transparent Garden Hose
Pipe layers	One layer from PVC pellets
Pipe Dia mm	10-38mm
Output kg/h	40-70
Main extruder	HYSJ75/28-22kw *1
Die head	One die head
Braider	No

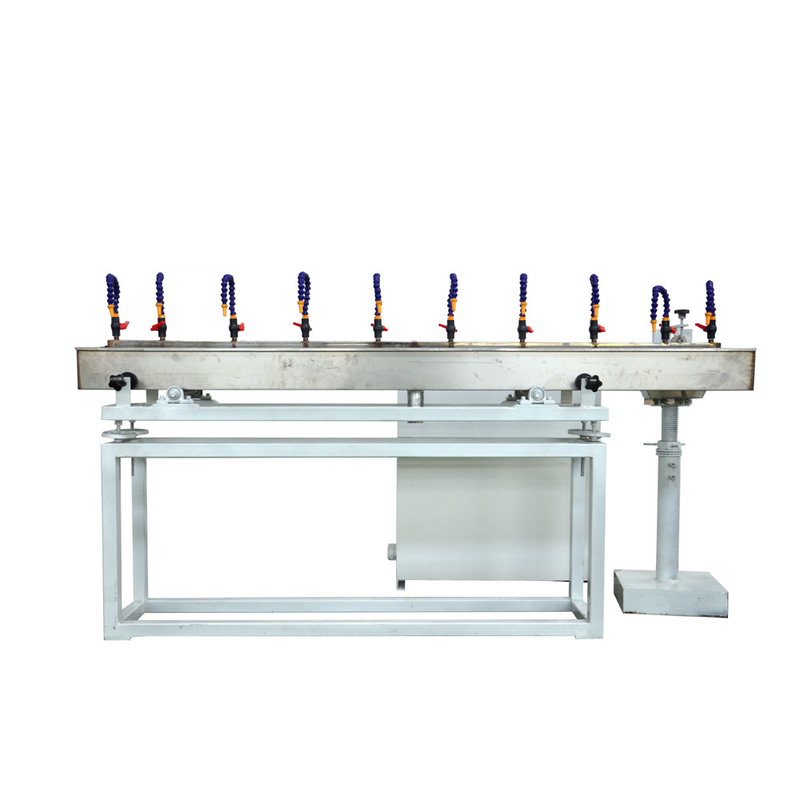

Cool tank	One Coolng tank
Bake oven	No

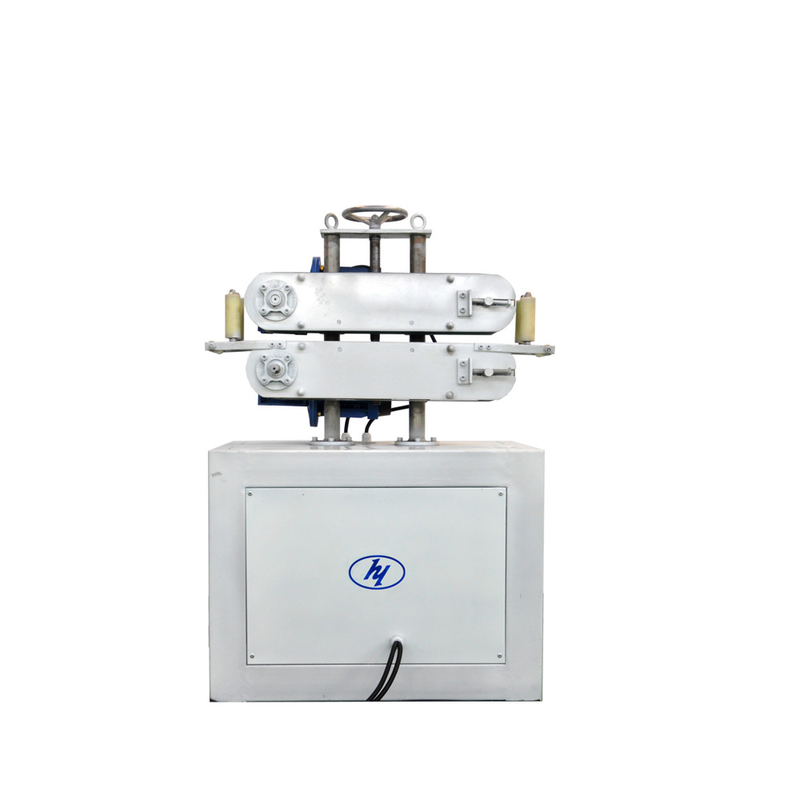

Haul Off	0.8-16m/min 1.5kw
printer	No

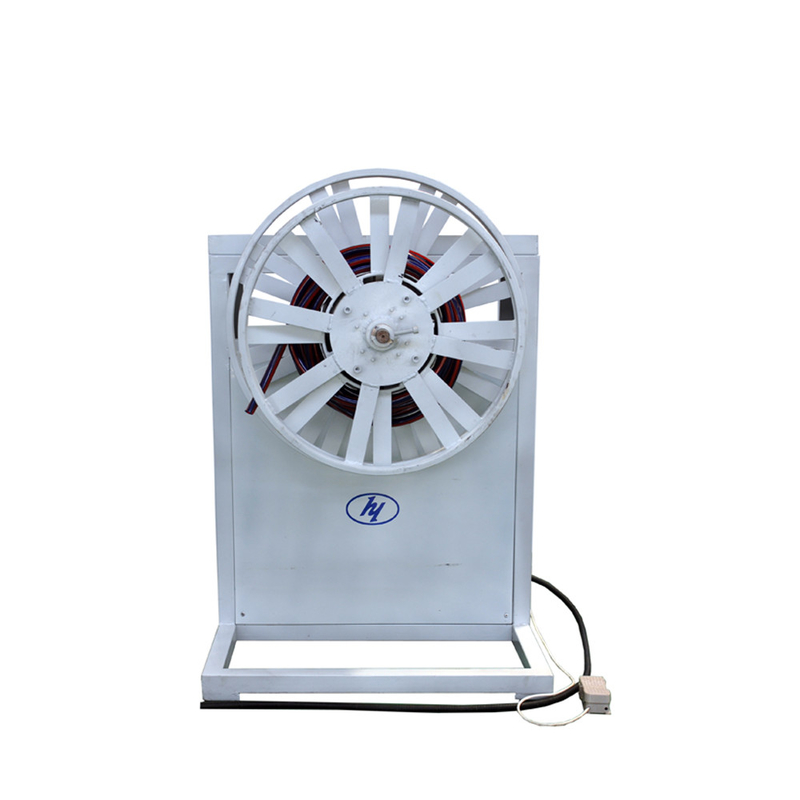

Winder	1.5kw motor manual

Specification of the Machine:

Soft Transparent Garden Tube Hose PVC Pipe Extrusion Machine SJ75/28 Production Line 3

SN	Parts name		Specification	Description

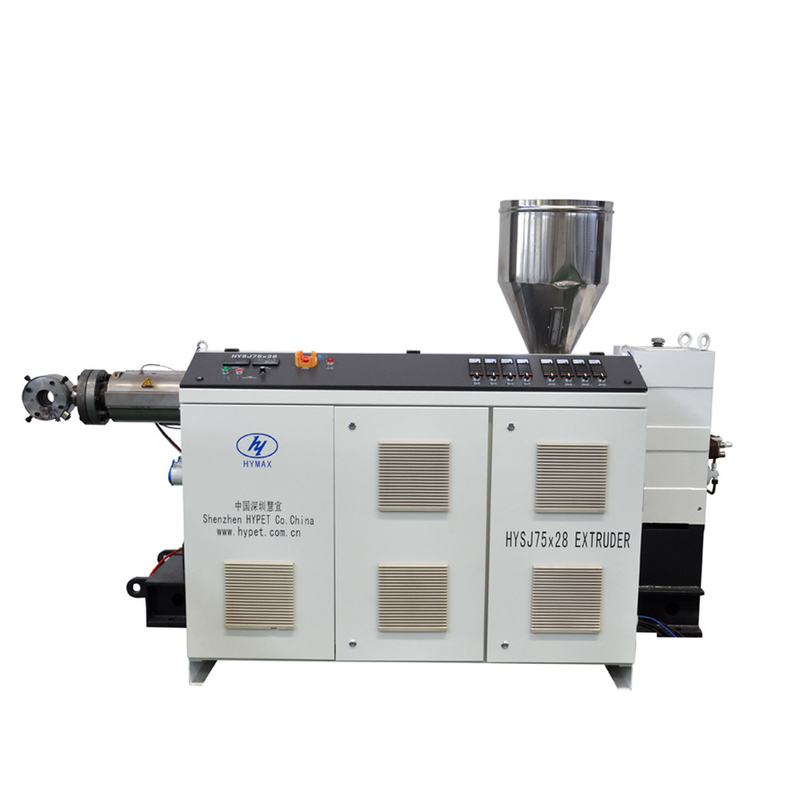

1	Extruder		Extruder model	HYSJ-75/28 single screw
			Output max	400 kg/h
			Center height	1,100mm
			Weight	3,300kg
2	Electrical Control system		Detachable control panel	Digital display, adjusting knobs
			Components brand	Siemens, RKC, ABB, etc.
			Note: PLC computer control system can be optional.
	Features	1. Cabinet is detachable, easy to install, maintain and transport; 2. With air conditioner; 3. Adopt the world famous brand electrical components, such as Siemens, ABB, RKC Schneider, and so on.
5	Gear box		Housing material	Ductile iron QT-500
			Gear material	20CrMnTi
			Gear surface	Hardened and ground in high precision
			Axis material	40Cr
6	Driving motor		AC motor power	22 kW
			AC inverter controller	Delta brand

7	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
		Control option:	RKC and traditional control can be offered
		Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
		Extra temperature zone for die head	10 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy .

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
Company email :	info@hypet.com.cn
