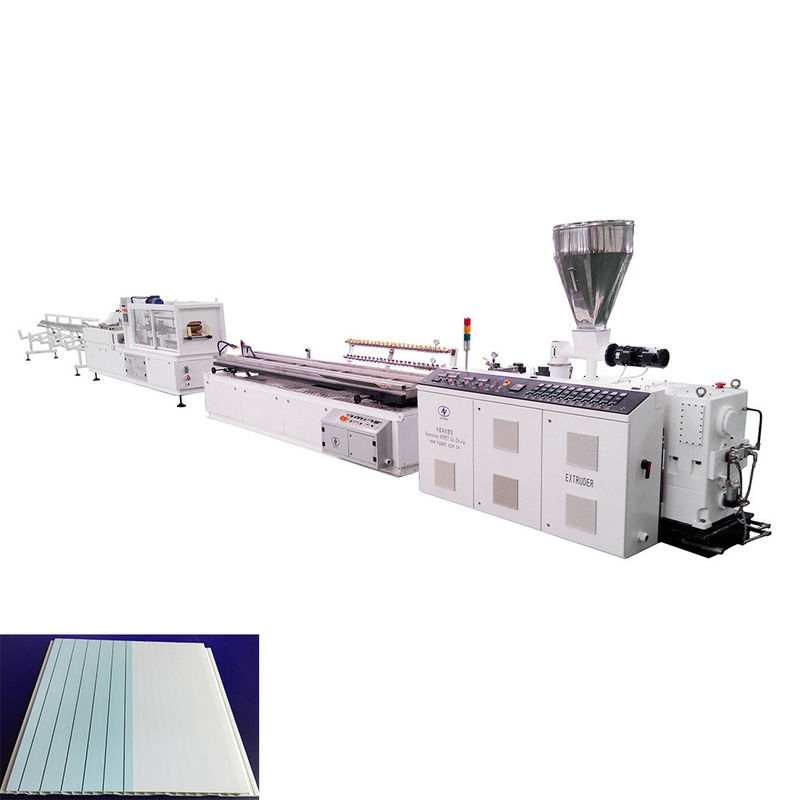

Name: Plastic False Ceiling PVC Wall Panel Board Extrusion Line with Conical Twin Extruder HYZS65/132 37kw Main Motor Power
Brand: Shenzhen HYPET Co., Ltd.
SKU: ZS65/132 PVC Ceiling Panel Profile Extrusion Line
Price: 41900 USD
Availability: InStock

Home > products > PVC/PE/WPC Profile Extrusion Line >

Plastic False Ceiling PVC Wall Panel Board Extrusion Line with Conical Twin Extruder HYZS65/132 37kw Main Motor Power

PVC Wall Panel Board Extrusion Line

Plastic Wall Panel Board Extrusion Line

PVC Wall Panel Conical Twin Extruder

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

ZS65/132 PVC Ceiling Panel Profile Extrusion Line

Request A Quote

Product Details

Control System:

PLC System

Motor:

Siemens/ABB/China Top Brand

Product Material:

PVC Composite Powder

Screw Design:

Conical Twin Screw

Voltage:

220V/380V 50Hz/60Hz

Warranty:

1 Year

Production Capacity:

4-7 Ton/day For Profile

Main Motor Power:

37kw

Panel Wideth:

200-300mm

Application For:

Pinch Plate / Deco Panel

Thickness:

6-7mm

Engineer Installation Service:

Yes

Highlight:

PVC Wall Panel Board Extrusion Line

Plastic Wall Panel Board Extrusion Line

PVC Wall Panel Conical Twin Extruder

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 41900/set

Packaging Details

Standard Package for sea shipment

Delivery Time

200-300mm PVC Ceiling panel profile making machine 45-65days

Supply Ability

200-300mm PVC Ceiling panel profile making machine 100set per year

PVC Panel Manufacturing Machine / Decorative Wallboard

Get Best Price

Video

380KG/H Auto Loader PVC Extruder Line PVC Profile Exrusion Machine HY240

Get Best Price

Video

Wood And Plastic Profile Extrusion Line For Making Wpc Decking Board

Get Best Price

Video

Pvc Wire Duct Profile Extrusion Machine High Speed Reach To 8m Per Minute

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

Plastic False Ceiling PVC Wall Panel Board Extrusion Line with Conical Twin Extruder HYZS65/132 37kw Main Motor Power 0

Plastic False Ceiling PVC Wall Panel Board Extrusion Line with Conical Twin Extruder HYZS65/132 37kw Main Motor Power 1

1.Technical features of whole line

SN	Specification	Description	Remark
1	Suitable material	PVC mixed powder
2	Max product width	200-300mm
3	Production speed	4~7m/min
4	Max. output	4-7ton/day
5	Test and accept	Based on HYPET standard formula.
6	Center height	1000mm
7	Whole line size (L x W x H)	23,000 x 1,300 x 2,450mm
8	Operation direction	From right to left
9	Color of equipment	HYPET white color
10	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

2.Production line Consist of parts

SN	Parts name	Quantity
240mm PVC ceiling machine line with HYZS 65/132 conic twin extruder
1	Conic twin screw extruder HYZS65/132 37kw	1 set
	Auto-loader for extruder in screw type for option	1 set
2	Moulds	1 set
3	Vacuum Calibrator in 6 m	1 set
4	Haul off machine	1 set
5	On-line laminater ( transfer / laminating)	1 set
6	Ceiling cutter	1 set
7	Auto Stacker	1 set

3.Conic Twin screw Extruder HYZS65/132

SN	Parts	Specification	Description
1	Extruder	Extruder model	HYZS-65/132 conic twin screw
		Output Max	250-350kg/h
		Center height	1000mm
		Weight	3100kg
2	Screw	Diameter	Ø65/132 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~38 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Material	38CrMoAlA with bi-metal type
		Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
		Heating control area	4 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	20 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.3kwx3 sets
4	Gear box	Housing material	Ductile iron QT-500
		Gear material	20CrMnTi
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
5	Twin screw Dosing feeder	Supplying material motor	1.1 kW
		Speed range	1-50 RPM
		Special ensured	FIFO with No retained material
6	Vacuum degas with selector	Vacuum degree	-0.004Mpa
6	Vacuum degas with selector	Motor power	1.5 kW
7	Driving motor	AC motor power	37 kW
7	Driving motor	AC inverter controller	Famous Delta inverter

8	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware. +AI control system
		Electric components	Branded in Siemens, Schneider RKC Omron, ABB, FUJI, and small unimportant parts in China famous brand
		Extra temperature zone for die head	8 zones
		Electric cabinet feature	all cable and connectors are with Wire aviation plug, so it can be taken apart with easy

4.Calibrating system HYYF 240

Plastic False Ceiling PVC Wall Panel Board Extrusion Line with Conical Twin Extruder HYZS65/132 37kw Main Motor Power 2

	Specification	Description
1	Material	Stainless steel S304 for watering material
2	Length	6,000mm
3	Center height	1,000 mm
4	Max. product width	240mm
5	Mold assembling size	320mm
6	Vacuum pump	5.5 kW x 3 sets
7	Water pump	5.5 kW x 1 set
8	Hot dryer pump	1.5kW*2
9	Vacuum joints	30 pcs
10	Water pipe joints	30 pcs
11	Center height	1,000mm +/- 50mm adjustable
12	Water gas separator	For multi pumps (3)
13	Vacuum connection	Ø50mm *2
14	Water connection	Ø50mm *2
15	Movable motor power	0.75 kW
16	Moving range of front & rear	800 mm
17	Vertical moving range	850~960mm
18	Tilt adjustment	1-25mm by manual
19	Cross adjustment	1-50mm
20	Left and right adjustment	1-120 mm
21	Cover on the top	Tempered glass with metal frame

5.Haul off machine

Plastic False Ceiling PVC Wall Panel Board Extrusion Line with Conical Twin Extruder HYZS65/132 37kw Main Motor Power 3

SN	Specification	Description
1	Haul off type	Up-down 2 claw type
2	Max. Product size	240mm width x 70mm thickness
3	Rubber block width	240mm
4	Haul off force	30,000 N
5	Max. speed	0.5~7m/min
6	Haul off shape	Can suitable for different product shape
7	Effective Length of caterpillar	2,000mm
8	Motor	AC motor, ABB inverter
9	Power	2.2kW x 2 sets
10	Clamp and adjustment type	2 individual cylinder
11	Center height	1,000mm

6.Ceiling Cutter

SN	Specification	Description
1	Cutting type	Saw cutter
2	Max. Cutting size	240mm width x 70mm thickness
3	Cutting movement	Transverse movement
4	Follow up by	Servo motor control
5	Feeding moment by	Servo motor control
6	Cutting Motor power	2.2 kW
7	Dust-absorb device	2.2 kW x 1 set
8	Air pressure	0.5~0.7Mpa
9	Moving method	Pneumatic
10	Control method	PLC control

7.Auto Stacker

Specification	Description
Tilting table	Pneumatically operated
Nominal length	4~6 mtrs
Material of tripping chute	MS rigid structural steel
Control method	PLC control

8.Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
Company email :	info@hypet.com.cn
