Vertical Gearbox Twin Screw Extruder Machine PVC Cable PVC Profile Make Machine

PVC Profile Twin Screw Extruder Machine

PVC Cable Twin Screw Extruder Machine

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001, CE

Model Number:

ZS65/132 PVC Cable Duct Extrusion Line

Request A Quote

Product Details

Screw Diameter:

65/132mm

Application:

PVC Cable Duct Profile

Production Capacity:

280-320kg/h For Profile

Warranty:

1 Year

Heating Method:

Electric Heating

Voltage:

380V 50HZ 3Phase(Customized)

Motor/Inverter:

Siemens/ABB/China Top Brand

Screw Design:

Conical Twin Screw

Main Motor Power:

37kw

Station/ Cavity:

Four

Extrusion Mould:

One For Four

Profile Range:

12*12 To 39*19mm

Control System:

PLC With Touch Screen

Max Length Of The Full Line:

About 20m

Engineer Installation Service:

Yes

Highlight:

PVC Profile Twin Screw Extruder Machine

PVC Cable Twin Screw Extruder Machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 46300/set

Packaging Details

Standard Package for sea shipment

Delivery Time

Plastic Cable Duct Extrusion Line 65working days

Payment Terms

L/C, T/T

Supply Ability

Plastic Cable Duct Extrusion Line 100set per year

PVC Panel Manufacturing Machine / Decorative Wallboard

Get Best Price

Video

380KG/H Auto Loader PVC Extruder Line PVC Profile Exrusion Machine HY240

Get Best Price

Video

Wood And Plastic Profile Extrusion Line For Making Wpc Decking Board

Get Best Price

Video

Pvc Wire Duct Profile Extrusion Machine High Speed Reach To 8m Per Minute

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

Vertical Gearbox Twin Screw Extruder Machine PVC Cable PVC Profile Make Machine 0

Vertical Gearbox Twin Screw Extruder Machine PVC Cable PVC Profile Make Machine 1

Vertical Gearbox Twin Screw Extruder Machine PVC Cable PVC Profile Make Machine 2

Vertical Gearbox Twin Screw Extruder Machine PVC Cable PVC Profile Make Machine 3

Vertical Gearbox Twin Screw Extruder Machine PVC Cable PVC Profile Make Machine 4

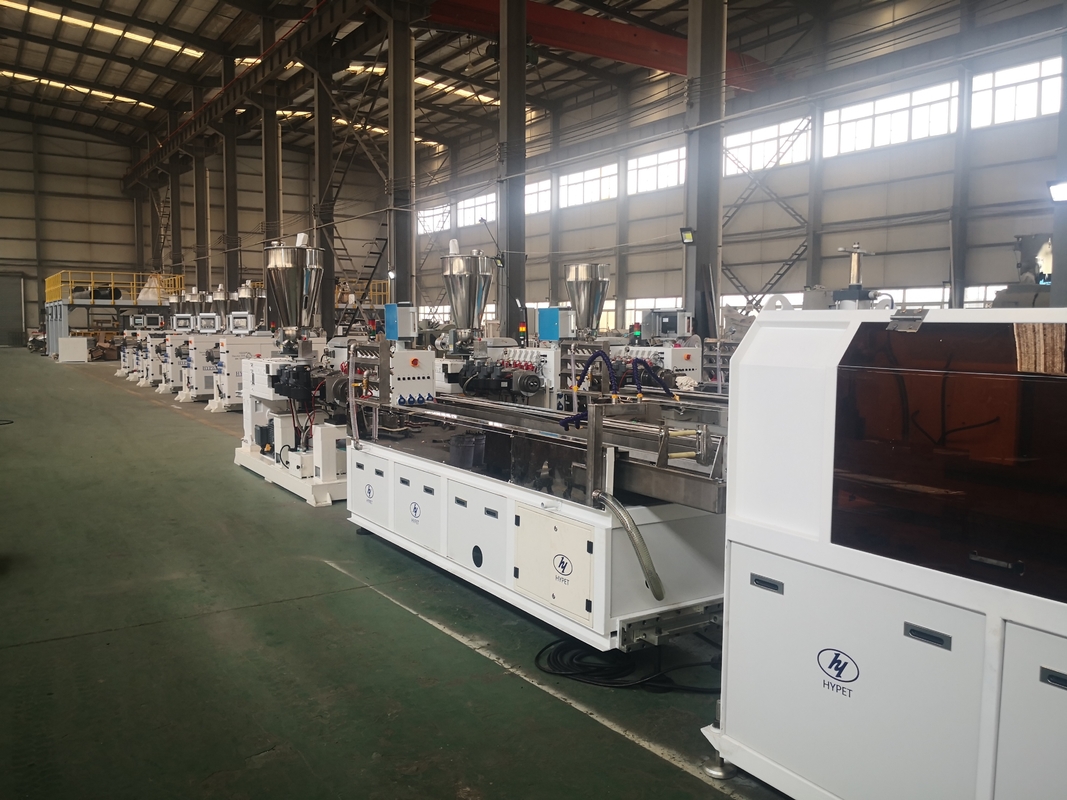

Production Line Brief introduction:

Features	High output	180-320kg/h for different type
	High efficient	Stable quality, efficient operation make high qualified
	Energy saving	It can save energy 20-30% by machine and software.
	Intelligent AI control	PLC + HYPET software to control the operation automatically and save each formulation case.
Machine information	Popular types for using	Single head , double head, and four head type
	Product shape and size	Can be done as the customer required.
	Caco3 amount	From 30phr to 100 phr when PVC 100 phr.
	Mould material	4Cr13 with heat treatment HB280-310
	Calibrating mould legnth	200mm
	Water Cooling tank length	1200mm shear with each other
Working condition	Electric power	3-phase, 380v +/- 10% , 50Hz (others for option
	Total power	Depends different lines
	Cooling water	≤ 20°C ≥ 0.3Mpa
	Compressed water	＞ 0.3m3/min, ＞ 0.5Mpa
	Overall sizes ( LWH)	22000* 1600*2500 mm

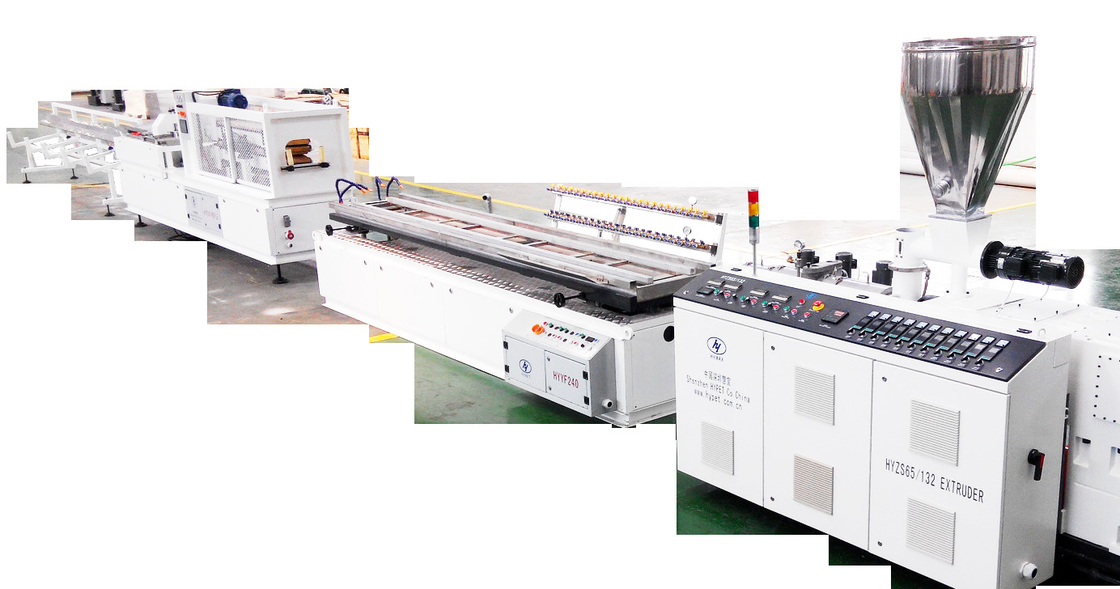

HYZS65/132 conic twin screw extruder with HYYF240 cable duct down stream line:

SN	Parts name	Qty
1	HYZS65/132 conic twin screw extruder with 45kw motor	1
2	Four station calibrating table in 4m Vacuum pump 5.5kw1 Water pump 1.5kw1 in width of 400mm	1
3	Four station haul off unit two claws type4, 0.75kw8 sets	1
4	Four station cutter ,cutter size Max 5040mm4	1
5	Four station Stacker	1

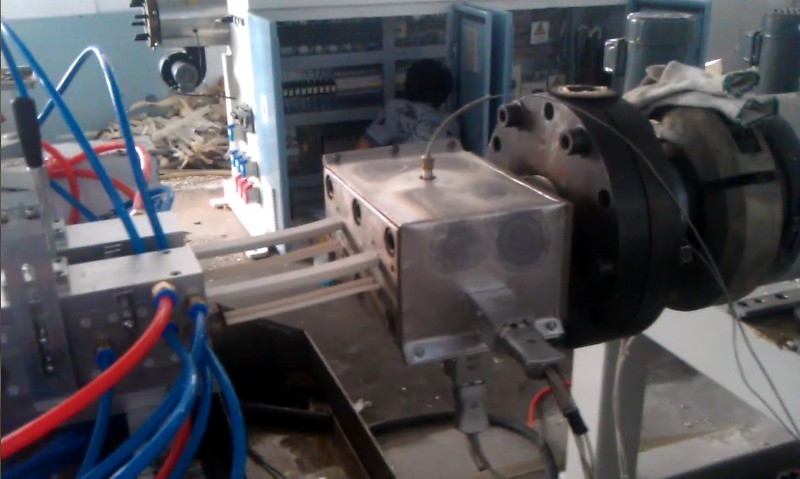

Cable duct mould list:

	Mould in four head material 4Cr13 stainless steel	QTY
1	16*16 in four head ( four bottom + four covers)	1
2	20*20 in four head ( four bottom + four covers)	1
3	25*16 in four head ( four bottom + four covers)	1
4	30*30 in four head ( four bottom + four covers)	1
5	40*25 in four head ( four bottom + four covers)	1

Technical specification:

SN	Items	Description

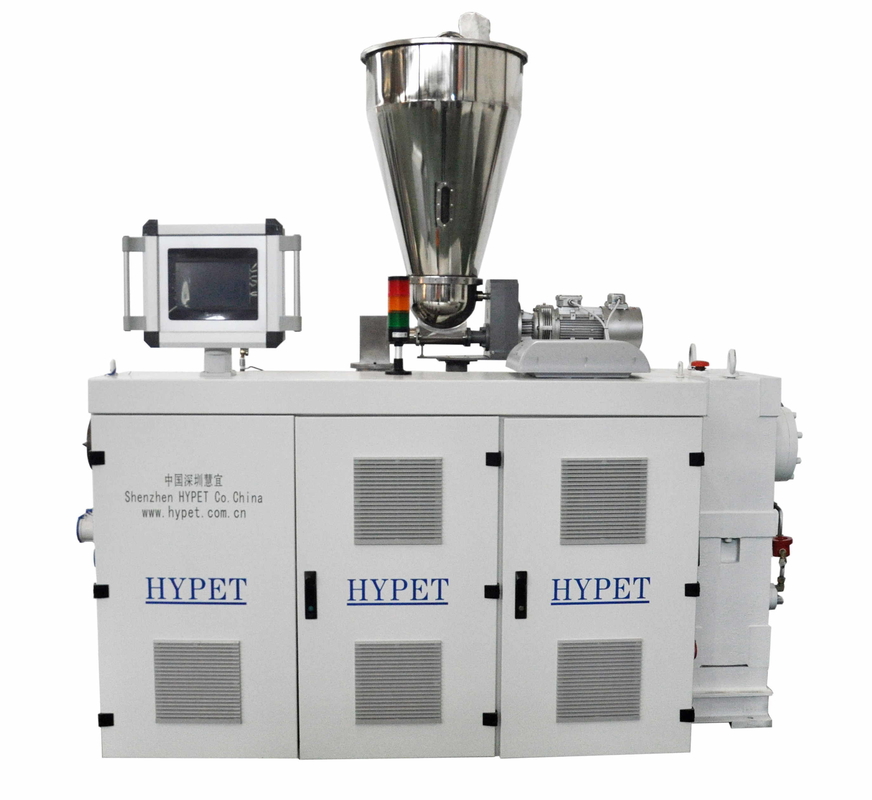

HYZS65/132 conic twin screw extruder
1	Extruder model	HYZS-65/132 conic twin screw
2	Output	300-350kg/h for profile
3	Screw diameter	Ø65/132 mm
4	Screw material	38CrMoAlA + special alloy
5	Heat treatment	Nitrogen-filled (0.50~0.70mm depth)
6	Core of the screw	Auto control for temperature (Oil cooling will be for option )
7	Rotate speed	0~38 r/min
8	Barrel Structure	Bimetallic In two parts, front part will be with special alloy inserted.
9	Front part of the barrel	SKD11 with heat treatment
10	Inside finish	Nitrogen-filled (0.50~0.70mm depth)
11	Heating control area	4 zones
12	Heating way	Cast aluminum/ ceramics
13	Heating power	22 kW
14	Cooling system	Low-noisy barrel cooling fan
15	Cooling power	0.3kW x 3 set
16	Temp & pressure Transducer	China famous brand with isolated cable.
17	Gear box brand	HYMAX gear box made by HYPET
18	Housing material	Ductile iron
19	Gear material	20CrMnTiA
20	Gear surface	Hardened and ground in high precision
21	Axis material	40Cr
22	Temperature of oil	Controlled by two system
23	Rubber sealer	Imported special rubber sealer used
24	Bearings	With famous and reliable brand.
25	Dosing feeder	Twin screw feeding type
26	Motor power	1.1kw
27	Speed range	1-50 RPM
28	Powder bridge	Anti powder bridge with high Caco3
29	Control	heavy loader type inverter
30	Vacuum degas motor power	2.2 kw
31	Vacuum degree	-0.04Mpa
32	Vacuum tank	Easy to be clean
33	Driving motor	AC Motor heavy type famous brand
34	Motor power	45kw
35	AC inverter controller	Famous Delta in heavy type
36	Electrical Control system	Siemens PLC+ HYPET AI auto control system
37	Electric components	Branded in Siemens, Schneider Omron, Delta /ABB, FUJI, and small unimportant parts in China famous brand
38	Extra temperature zone for die	8 zones
39	display screen size	14” big size monitor
40	Electric cabinet cable	Easy to be disassemble by joints
41	Extra power adaptor	For down stream, and other machine
Cable duct down stream machines

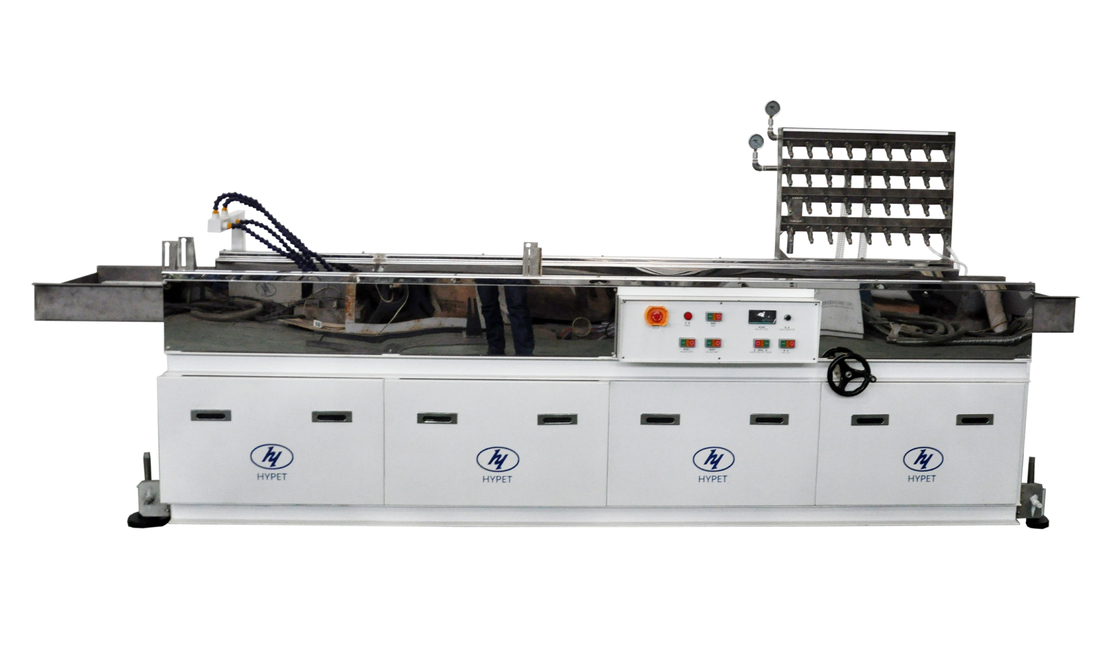

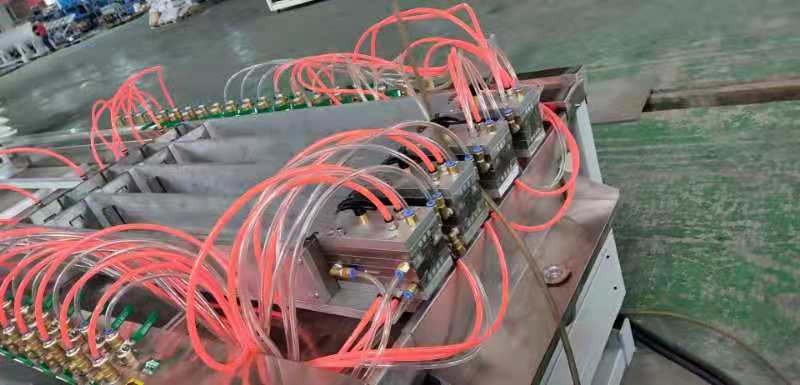

Calibrating table with four station
1	Material	Stainless steel S304 for watering material
2	Length	5,000mm
3	Center height	1,000 mm
4	Max. product width	40*40mm
5	Mold assembling size	320mm
6	Vacuum pump	5.5 kW x 1 set
7	Water pump	2.2 kW x 1 set
8	Hot dryer pump	1.5kW*2
9	Vacuum joints	30 pcs
10	Water pipe joints	30 pcs
11	Center height	1,000mm +/- 50mm adjustable
12	Water gas separator	For multi pumps (3)
13	Vacuum connection	Ø50mm *2
14	Water connection	Ø50mm *2
15	Movable motor power	0.75 kW
16	Moving range of front & rear	800 mm
17	Vertical moving range	850~960mm
18	Tilt adjustment	1-25mm by manual
19	Cross adjustment	1-50mm
20	Left and right adjustment	1-120 mm
Haul off with four station
1	Haul off type	Up-down 2 claw *4 sets
2	Max. Product size	4040mm 4 sets
3	Rubber block width	56mm
4	Haul off force	1600 N *4
5	Max. speed	0.5~7m/min *4
6	Haul off shape	Can suitable for different product shape
7	Effective Length of caterpillar	1000mm *4
8	Motor	AC motor with famous inverter
9	Power	0.75 kW x 4 sets
10	Clamp and adjustment type	2 individual cylinder
11	Center height	1,000mm
Cutter with four station
1	Cutting type	Saw cutter with four station
2	Max. Cutting size	40mm width x 40mm thickness *4
3	Cutting movement	Transverse movement
4	Follow up by	Clamping duct in runing
5	Cutting Motor power	2.2 kW*4 sets
6	Dust-absorb device	2.2 kW x 1 set
7	Air pressure	0.5~0.7Mpa
8	Moving method	Pneumatic
9	Control method	PLC control
Stacker with four station
1	Tilting table	Pneumatically operated
2	Nominal length	4~6m *4
3	Control method	PLC control

Afte -sales Service

Items	quantity
Guarantee period	1 year but he service is available lifelong, during guarantee period the cost of the components will be covered by the seller except the easy broken parts and damaged parts by the human reason
Training before shipping	Buyer’s technical person can be sent to china before shipping for training and operating, for 7-10 days
Technical documents	Electric principle drawing, operation manual, and electric parts manual etc
Seller engineers	Seller can send the engineers ot the buyer factory for commissioning and training. But the cost caused by the seller experts in the customer country will be covered by the buyer, including shuttle trip tickets inland traffic medical fee, lodging dinner and also 100 USD /day /one person as salary for the enigneers .
Contacts way	Whatsapp, wechat, mobile, etc +86 13823232106
Company email :	info@hypet.com.cn
