Name: High Output Fast Extruding Pvc Pipe Electric Cable Wire Conduit Production Line With ZS65/132 Extruder With 45KW
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYZS65/132 Conic Twin Screw Extruder
Price: 17500 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

High Output Fast Extruding Pvc Pipe Electric Cable Wire Conduit Production Line With ZS65/132 Extruder With 45KW

High output pvc pipe production line

Fast extruding pvc pipe production line

Electric cable wire conduit production line

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYZS65/132 Conic Twin Screw Extruder

Request A Quote

Product Details

Barrel Heating Zones:

Motor Power:

45KW

Inventor:

Delta

Gear Box:

Vertical Reducer

Screw Size:

65/132mm

Barrel Cooling System:

Air Cooling

Main Motor Brand:

Siemens

Gear Surface:

Hardened And Ground In High Precision

Max Output:

450kg/h

Screw Quantity:

Two

Barrel Type:

Two Parts /One Body

Feeder Motor Power:

1.5kw

Control System:

PLC

Processing Material:

PVC/WPC

Vacuum Pump:

1.1~3kw

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

High output pvc pipe production line

Fast extruding pvc pipe production line

Electric cable wire conduit production line

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 17500/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

30set/month

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

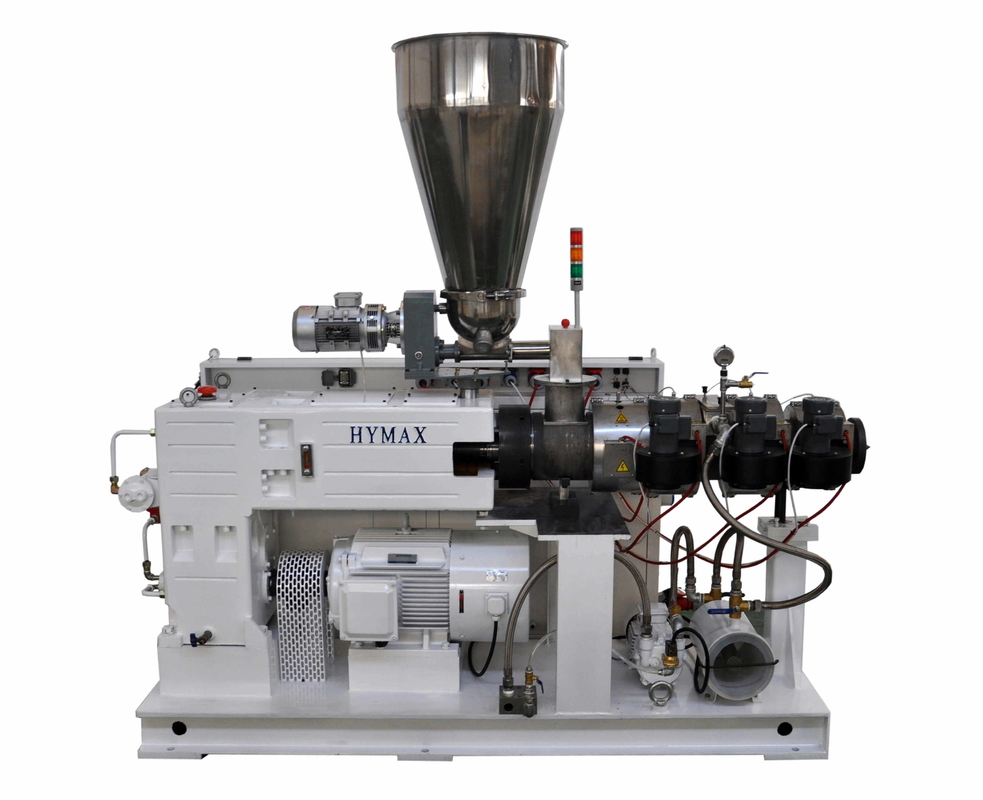

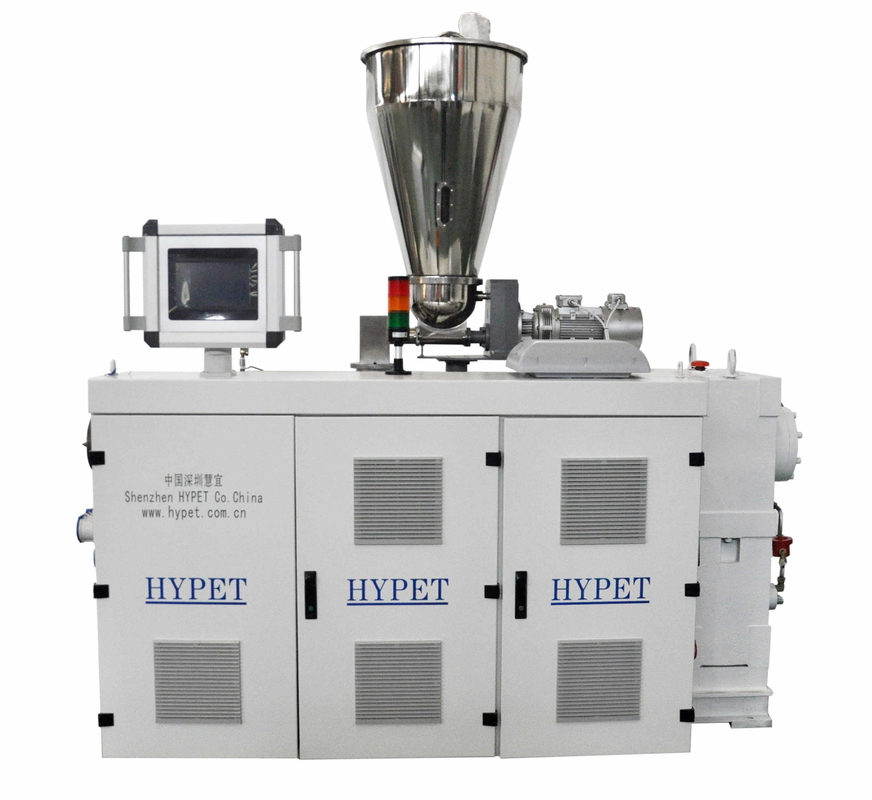

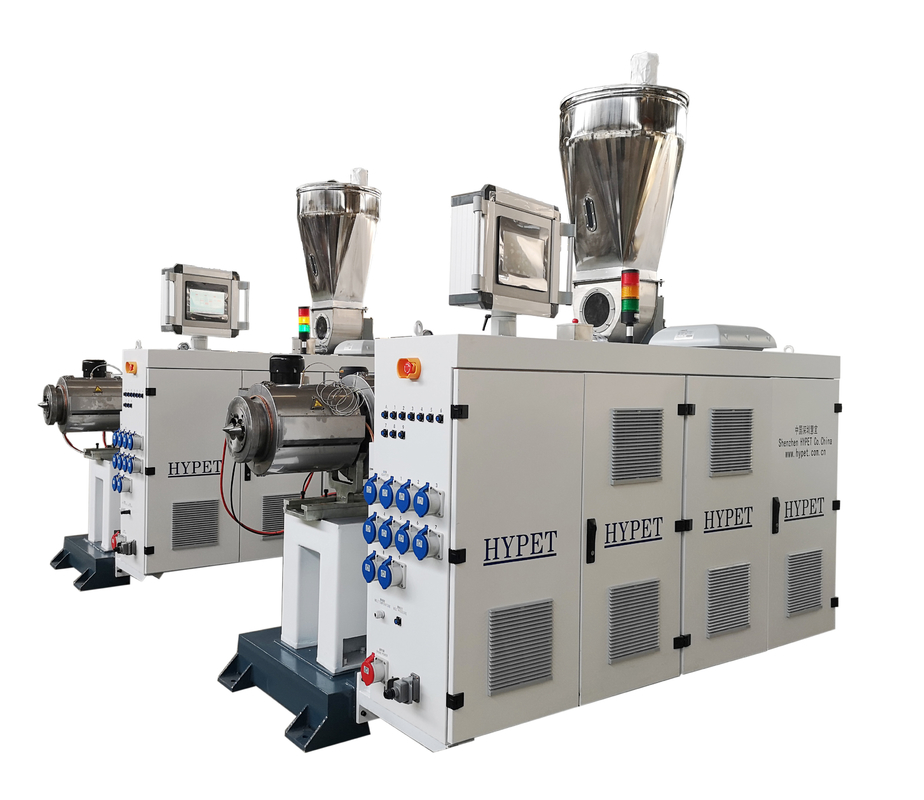

1.HYZS65/132 Conic Twin Screw Extruder

2.Speciality of HYPET Conic Twin Screw Extruder

SN	Items	Speciality
1	High Output	For PVC pipe, 350-450 kg/h, for Profile 200-280kg/h more
2	Energy saving	Energy saving in heaters & driving Transmission system & Plasticizing by 15-20%.
3	Good quality in Barrel and Screw	Barrel in two parts with special alloy, if Caco3 is 200phr, it ensure 18 mothes, if Caco3 is less than 100phr, it will be ensured for 3 years or more.
4	High quality in machine parts	Siemens PLC control system, Delta heavy type inverter, Siemens Schnaider, Omron,Rkc components ,Siemens Motor, Anti-Bridge twin screw dosing feeder. Big Volume Electric cabinet with good cooling device.
5	Low Cost Performance	Price is in middle,output is higher,using Life is longer, So, using HYPET one is as equal 1.5 times as normal extruder.
6	HYPET Gear Box	High torque, Lower oil temperature control,low noise,and non leakage of oil.
7	Block Type Extruder	All parts are standardized and labeled,which is convenient for later replacement and maintenance,and also convenient for customers to purchase standard parts for assembly,saving cost and time
8	HYPET other special offerings	1, Provide special processing aids HYA-1 and Modi Stearic acid with special technical content to directly improve the quality of PVC products and greatly reduce the cost, 2, Offering On-Line Technical Service for free, Offering Technical Engineers service for big project or solving key technical items, 3, Offering matched good down stream equipment for plastic pipe profile, sheet /board pellets Etc.

3.Specification of the Machine

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-65/132 conic twin screw
		Output	350-450kg/h for pipe 200-280kg/h for profile or more
		Center height	1000mm
		Dimension	3000 x 1300 x 2600mm
		Weight	2700kg
2	Screw	Diameter	Ø65/132 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~60 r/min
		Core of the screw	Auto control for temperature (Oil cooling will be for option )

3	Barrel	Barrel Structure	In two parts, front part will be with special alloy inserted.
		Big Part of the barrel	38CrMoAlA
		Fron part of the barrel	SKD11 with heat treatment
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)
4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display
5	Heater and cooling fans	Heating control area	4 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	25kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.2kw x 2 sets + 0.37kw x 1 set
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	Wih famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	1.5 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	Delta heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	2.2 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	45 kW in Siemens brand
9	Driving motor	AC inverter controller	Delta in heavy type

10	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET soft ware.
		Electric components	Branded in Siemens,Schneider,RKC Omron,ABB,FUJI,and small unimportant parts in China famous brand
		Extra temperature zone for die head	9 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life . 4, PLC monitor control system with button adjustment for controlling screw speed with easy .

4.Other Option Requirements

Some requirments need the customizing as below before the order confirmed.

SN	Items	Speciality
1	Direction of the operation canbinet	Standard direction is from right to left. Other direction can be option.
2	Electric voltage & Frequency	Standard is 380/3 phases, 50Hz, Others can be option
3	PVC raw material	Stdanrd is PVC powder, special material and speical fomulation can be discussion and for option.
4	Electric cabinet cooling	Standard cooling system for cabinet is meet normal environment, but Air conditional can be equipped as option
5	Machine color	Stadnard color is HYPET light white, other color can be option.
6	Cooling water and air compressor	Designing on the shop that need of cooling water and air compressor system for free.
7	Operation instruction	PVC processing technology, formulation, operation requirments can be discussed and offered.
